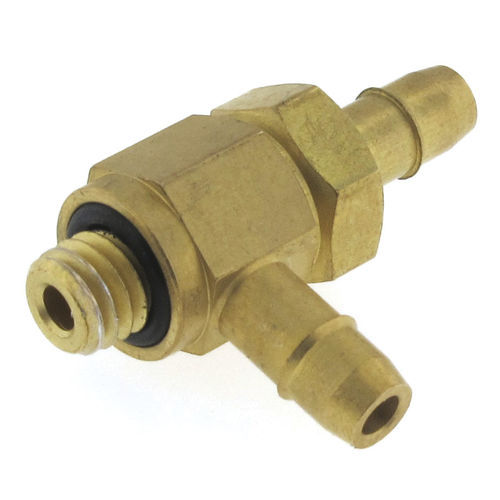

Pneumatic fitting MTACS-.-.-.
threadedbarbedT

pneumatic fitting
pneumatic fitting
pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
threaded, barbed
Configuration
T
Material
brass
Gender
male
Other characteristics
O-ring face seal, external thread, miniature
Diameter

1.6 mm, 2 mm, 2.4 mm, 3.2 mm
(0.063 in, 0.079 in, 0.094 in, 0.126 in)

Operating pressure

Min.: 0 psi

Max.: 100 psi

Description

Ultra miniature, adjustable position street tee fitting, with 10-32 external thread, and built-in reducing barbs, for two tubes or hoses with different inside diameters. Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing. Features Beswick’s trademark O-ring seal design provides a leak-tight joint. Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface. Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
