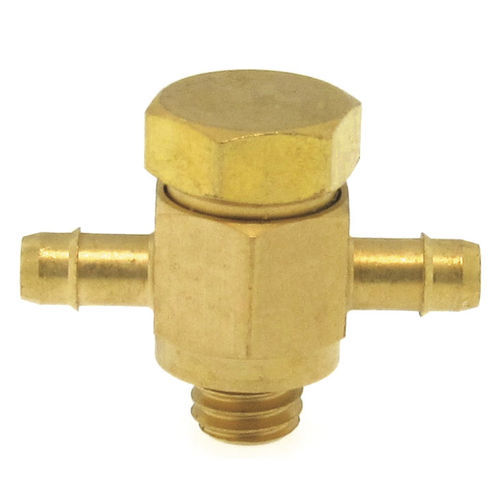

Pneumatic fitting MTASH Series
barbedTbrass

pneumatic fitting
pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
barbed
Configuration
T
Material
brass
Diameter

Max.: 3.2 mm (0.126 in)

Min.: 1.6 mm (0.063 in)

Operating pressure

Max.: 100 psi

Min.: 0 psi

Description

Description: Ultra miniature, adjustable position tee fitting, with 10-32 external thread, and two built-in barbs. This fitting is similar to the MTAS series, but features a raised 5/16” hex head stud for installation, rather than a recessed screwdriver slot. Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing. Features Beswick's trademark O-ring seal design provides a leak-tight joint. Beswick’s proprietary single edged "line contact" barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.
