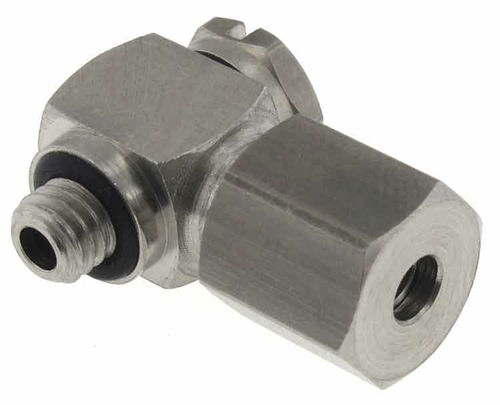

Miniature compression fitting elbow with 10-32 external thread, for 1/8″ OD stiff plastic or metal tubing. Adjustable position design.
Max Pressure Rating: 1,000 psig in brass and 3,000 psig in stainless steel, when used with high pressure metal tubing. When using stiff plastic tubing, the burst pressure of the tube is typically the limiting factor.
Material: All configurations use a 303 or 316 stainless steel stud. Body, nut, and ferrules are available in brass, 303 or 316 stainless steel.
Features
Beswick compression fittings give you the ability to operate at high pressures and temperatures while maintaining a small envelope.
Beswick’s ferrules provide for a leak-tight tubing connection while a captured O-ring ensures a reliable face seal for male threaded fittings.
Easy to install without special tools.
