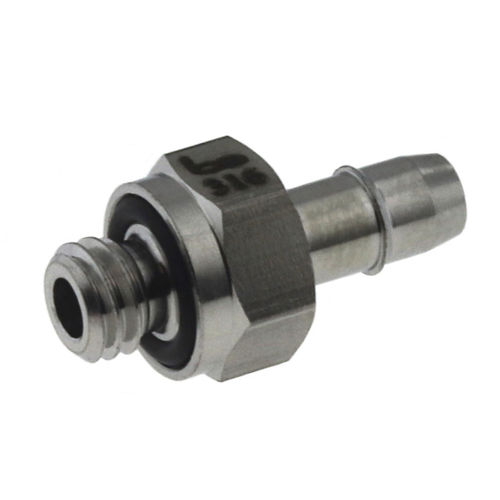

Hydraulic fitting MH-..-.
pneumaticthreadedbarbed

hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic, pneumatic
Attachment
threaded, barbed
Material
brass, stainless steel
Gender
male
Other characteristics
O-ring face seal, corrosion-resistant, external thread
Diameter

Min.: 0.8 mm
(0.031 in)

Max.: 6.4 mm
(0.252 in)

Operating pressure

Min.: 0 psi

Max.: 100 psi

Description

Straight 10-32 external threaded barb fitting. Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing. Features Beswick’s trademark O-ring seal design provides a leak-tight joint. Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface. Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material. Note: MH-1012 is also available in Titanium. The part number is: MH-1012-T2. Consult factory for more details.
