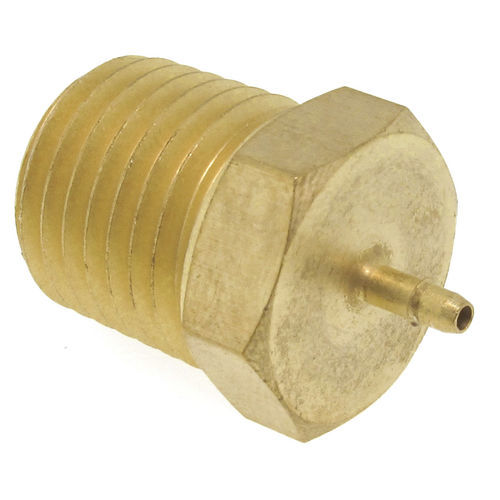

Pneumatic fitting MPAH-4 Series
barbedbrassstainless steel

pneumatic fitting
pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
barbed
Material
brass, stainless steel
Diameter

Min.: 1.6 mm (0.063 in)

Max.: 6.4 mm (0.252 in)

Operating pressure

Min.: 0 psi

Max.: 100 psi

Description

Description: Straight fitting from 1/4” NPT external thread to barb. Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing. Features Beswick’s proprietary single edged "line contact" barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.
