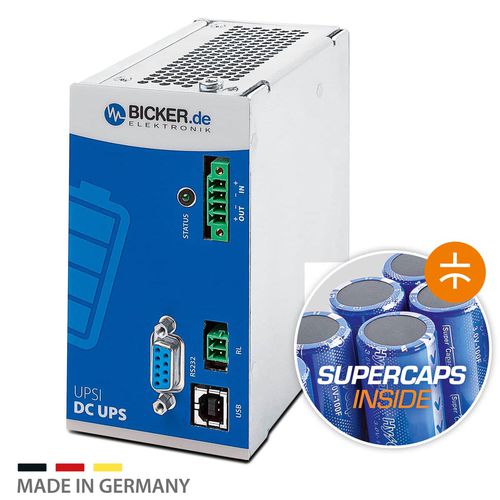

DC UPS UPSI-1208DP2

12VDCwith supercapacitorcapacitor-buffered

Intelligent DC UPS / DIN Rail / 96W / 12V 8A / Supercaps
Uninterruptible power supply (DC UPS) with Supercap buffering

The DC UPS UPSI-1208DP2 with included energy storage has been designed for DIN Rail applications. The robust housing protects electronic parts against coarse pollution. The µC-controlled DC-UPS is based on the proven UPSI-technology and features numerous protective and monitoring functions as well as an integrated reboot function, which activates the auto-restart of the computer system, as soon as the input voltage returns during shutdown or later.
Power failures, voltage drops, fluctuations and flicker in the 24 VDC supply network can quickly become a problem in production systems, safety technology and embedded industrial PCs and cause costly failures or even data loss. The intelligent emergency power supply UPSI-1208DP2 with integrated Supercaps ensures the fail-safe supply of the connected DC load. Equipped with numerous additional functions, our DC UPS solutions convince in a wide variety of applications worldwide!

• Backup time for 96W load approx. 30 seconds
• Ambient temperature range -20...+65°C
• Maintenance free thanks to supercaps
• Intelligent power sharing
• Regulated output voltage in backup mode
• Minimum load detection
• Power fail Timer-Funktion
• Relay dry contact on power fail
• USB & RS232 Interface
• HID control center
• Reboot-Funktion
• Fuel gauge
