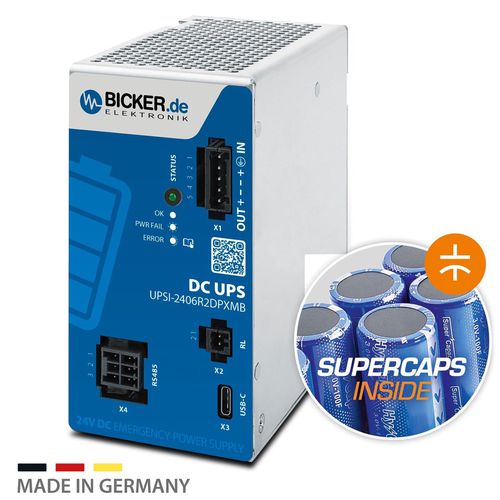

DC UPS UPSI-2406R2DP2MB

24 Vwith supercapacitorcompact

Intelligent DC UPS with Supercaps / 24VDC 6A / USB-C / RS485 / DIN Rail / Uninterruptible power supply The DC UPS UPSI-2406R2DP2MB with USB and Modbus Interface as well as included supercap energy storage has been designed for DIN Rail applications. The robust housing protects electronic parts against coarse pollution. The µC-controlled DC-UPS is based on the proven UPSI-technology and features numerous protective and monitoring functions as well as an integrated reboot function, which activates the auto-restart of the computer system as soon as the input voltage returns during shutdown or later. - Operating temperature range: -20…+65°C - Maintenance free thanks to Supercaps - USB & RS485 Modbus Interface - High cycle life up to 500,000 charge- and discharge cycles - Intelligent power sharing - Regulated output voltage in backup mode - Minimum load detection - Power fail Timer-Function - Relay dry contact on power fail - Plug & Play - recognized as UPS by operating system - Extended functionality by UPScom management software - Shutdown & Reboot function - Approved to IEC/EN/UL 61010-1 / -2-201 Output voltage: 24VDC Input voltage: DC UPS storage medium: Supercap Mounting: DIN-Rail Output current max. convection cooled in A: 6A Output power in W: 144 Output current max. fan cooled in A: 6A WEEE-Nr: DE18400369 Technical Specifications / Features - Output voltage: 24VDC - Input voltage: DC - UPS storage medium: Supercap - Mounting: DIN-Rail - Output current max. convection cooled: 6A - Output power: 144W - Output current max. fan cooled: 6A - Operating temperature: -20…+65°C - Maintenance free (Supercaps) - USB & RS485 Modbus Interface - High cycle life: up to 500,000 cycles - Intelligent power sharing - Regulated output voltage in backup mode - Minimum load detection - Power fail timer function - Relay dry contact on power fail - Plug & Play (recognized as UPS by OS) - Extended functionality with UPScom management software - Shutdown & Reboot function - IEC/EN/UL 61010-1 / -2-201 approved - Weight: 0.28 kg
