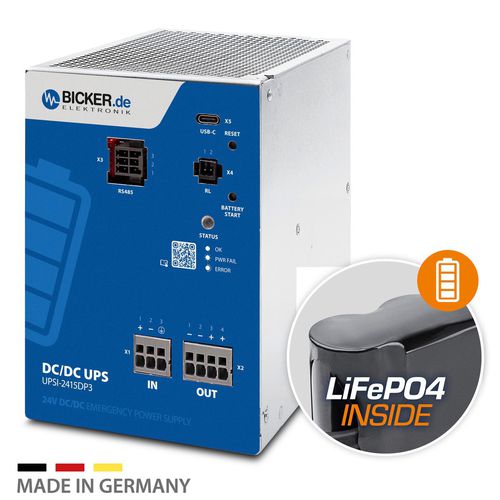

DC UPS UPSI-2415DP3

all-in-one24 VLiFePO4

The UPSI-2415DP3 is a compact intelligent 24V DC UPS in a DIN-rail housing designed to protect embedded industrial PCs, controllers, motor drives and other control-cabinet equipment. It integrates a high-performance LiFePO4 battery pack and front-facing communication ports for simplified integration and monitoring.

Key features

• High-performance LiFePO4 battery pack with IEC 62133 certification
• Up to 6,000 charge/discharge cycles
• 360 W output power, 24 VDC output voltage, max. 15 A (convection cooled)
• Intelligent input current detection with power-sharing and power-fail timer
• Front-mounted USB-C and RS485 (ModBus) interfaces for integration and monitoring
• Regulated output voltage in backup mode
• Minimum load detection and fuel gauge
• Relay dry contact on power fail and reboot function for automated restart
• Shutdown via external signal and battery start function
• Optimized charging process for significantly shorter charge times
• Improved electronics robustness and intrinsic safe redundancy in case of failure
• Low-emission, efficient design compliant with EN 61000-6-3
• Includes UPScom management software (Web-UI, WebAssembly) for monitoring, configuration and secure shutdown

Technical specifications

• Output voltage: 24 VDC
• Input voltage: DC
• Mounting: DIN-rail
• UPS storage medium: LiFePO4 (64 Wh)
• Output power (W): 360
• Maximum output current (convection cooled): 15 A
• Battery lifetime: up to 6,000 cycles
• Operating temperature range: -20 … +50 °C
• Weight: 1.43 kg
• Protections: reverse polarity, short-circuit and overcurrent protection
• EMC / Immunity: EN 61000-4-4 (Burst) up to 2 kV, EN 61000-4-5 (Surge) up to ±1 kV (L–N) and ±2 kV (L–PE, N–PE)
• Certifications / standards: IEC 62133 (battery pack); relevant conformity declarations available
• Interfaces: USB-C, RS485 (ModBus)
• Software: UPScom (Web-UI, cross-platform via WebAssembly) – real-time monitoring, state-of-charge, shutdown delay, maximum backup time, minimum battery capacity before system start, event notifications
• Typical applications: Industry 4.0, automation, lab & medical devices, transportation, safety and communication systems
• GTIN / EAN: 4251877654346
• Article number / SKU: UPSI-2415DP3
