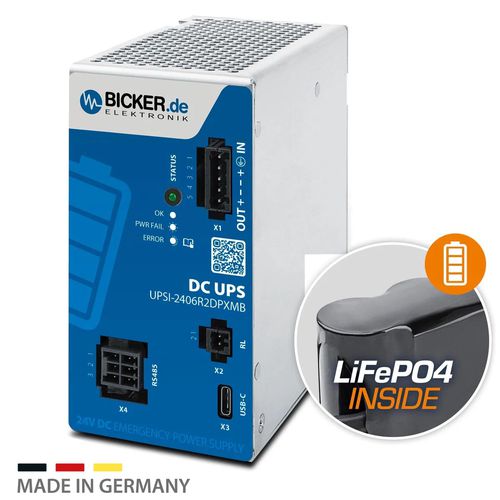

DC UPS UPSI-2406R2DP3MB

24 VLiFePO4compact

Intelligent DC UPS with LiFePO4 Battery / 24VDC 6A / USB-C / RS485 / DIN Rail / Uninterruptible power supply The DC UPS UPSI-2406R2DP3MB with USB and Modbus Interface and included LiFePo4 energy storage is designed for DIN Rail applications. The robust housing protects electronic parts against coarse pollution. The µC-controlled DC-UPS is based on the proven UPSI-technology and features numerous protective and monitoring functions as well as an integrated reboot function, which activates the auto-restart of the computer system as soon as the input voltage returns during shutdown or later. - Operating temperature range: -20...+50°C - High-performance LiFePO4 battery pack with IEC 62133-2 safety certification - Offers up to 6,000 cycles - USB & RS485 Modbus Interface - Intelligent power sharing - Regulated output voltage in backup mode - Minimum load detection - Power fail Timer-Function - Relay dry contact on power fail - Plug & Play - recognized as UPS by operating system - Extended functionality by UPScom management software - Shutdown & Reboot function - Approved to IEC/EN/UL 61010-1 / -2-201 Technical Specifications: - Output voltage: 24VDC - Input voltage: DC - Mounting: DIN-Rail - Output current max. convection cooled: 6A - UPS storage medium: LiFePO4 - Output power: 144W - Output current max. fan cooled: 6A - Weight: 0.72 kg - EAN: 4251877652538
