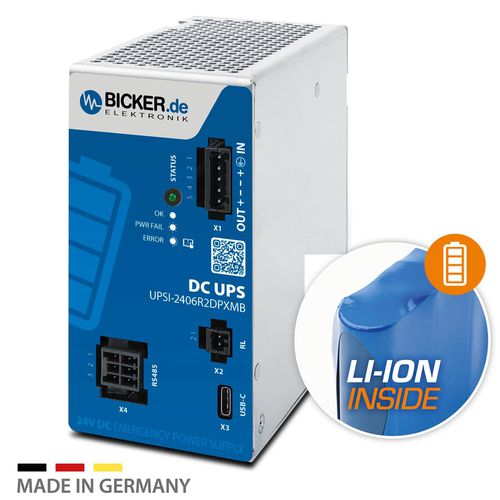

24 V UPS UPSI-2406R2DP1MB

24VDCDCLi-ion

Overview
The UPSI-2406R2DP1MB is a microcontroller-controlled DC UPS for DIN-rail mounting. It provides compact, reliable 24 V DC backup power with integrated Li‑Ion energy storage and interfaces for system integration (USB-C, RS485 Modbus). Designed for industrial control and automation to protect against power loss, voltage dips and flicker.

Key points

• Integrated lithium‑ion battery pack with IEC 62133-2 safety certification
• Front USB‑C and RS485 (Modbus) interfaces for monitoring and control
• Intelligent power sharing to balance input power between load and charger
• Regulated output voltage in backup mode to stabilize connected equipment
• Minimum load detection and Smart Battery Lock to prevent parasitic discharge
• Power‑fail timer and relay dry contact for external signalling
• Plug & Play: recognized as UPS by operating systems; extended functions via UPScom software
• Shutdown and automatic reboot for connected IPC systems
• Approvals: IEC/EN/UL 61010‑1 / -2‑201

Description
The µC‑controlled DC UPS uses proven UPSI technology and integrated Li‑Ion storage to deliver a compact, high‑density backup for DC loads. Compared with lead‑acid batteries, the Li‑Ion pack offers higher energy density, more charge cycles and longer service life. Optimized power electronics ensure stable supply to connected equipment and reduce the risk of downtime and data loss. An automatic reboot function restarts systems when input power is restored.

Surge & burst immunity and protection functions
The unit meets EN 61000‑4‑4 (burst) and EN 61000‑4‑5 (surge) test criteria (see documentation for exact levels). Built‑in protections include reverse‑polarity protection, short‑circuit and overcurrent protection to maximize operational safety and longevity of connected devices.

UPS management software
UPScom management software provides a WEB UI (WASM‑based) for real‑time monitoring (state‑of‑charge), configuration (load sensor mA, shutdown delay, max backup time, minimum charge before start) and controlled shutdown/reboot. Cross‑platform support for modern browsers on x86 and many ARM‑64 systems.

Product properties
Output voltage: 24 V DC
Max output current (convection cooled): 4 A
Output power: 96 W
Input voltage type: DC
Mounting: DIN‑rail
UPS storage medium: integrated Li‑Ion (IEC 62133‑2 certified)

Technical specifications

• Model: UPSI-2406R2DP1MB
• Output voltage: 24 V DC
• Maximum output current (convection cooled): 4 A
• Output power: 96 W
• Input voltage: DC
• Mounting: DIN‑rail
• Energy storage: integrated Li‑Ion battery
• Battery capacity (example family value): 37 Wh (variant dependent)
• Interfaces: USB‑C, RS485 (Modbus)
• Functions: intelligent power sharing, minimum load detection, regulated backup output, power‑fail timer, relay dry contact, shutdown & reboot
• Software: UPScom (WEB UI, cross‑platform)
• Safety / approvals: IEC/EN/UL 61010‑1 / -2‑201; IEC 62133‑2 (battery)
• Operating temperature range: 0…+50 °C
• Surge/Burst immunity: EN 61000‑4‑4 / EN 61000‑4‑5 (see docs)
• Plug & Play: recognized as UPS by operating systems
• GTIN/EAN: 4251877653936
• WEEE number: DE18400369
