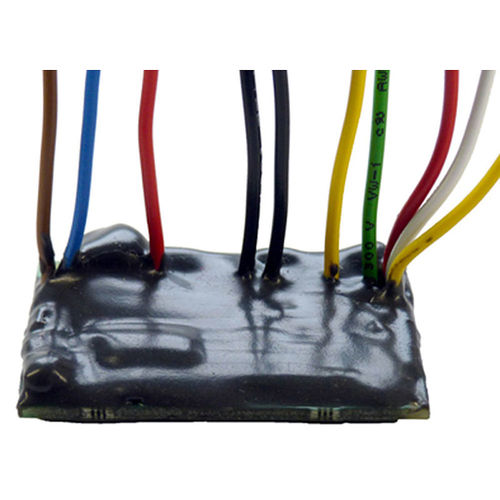

Digital I/O module BWR3067

ASisafetyvoltage

ASi Safety PCB Module, 43 mm x 30 mm, 1 x 2 channels safe input (SIL 3, cat. 4) for floating contacts, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 20 mA per output, periphery connection via connecting wires (200 mm), thick coated, LED, ASi connection via connecting wires (200 mm), 1 single address Technical data Circuit board dimensions - 43 mm x 30 mm Outputs digital - 2 x electronic Input voltage (sensor supply) - out of ASi Output voltage (actuator supply) - out of ASi PCB connection - connecting wires, 200 mm Coating - thick coated ASi connection - connecting wires, 200 mm ASi address - 1 Single address
