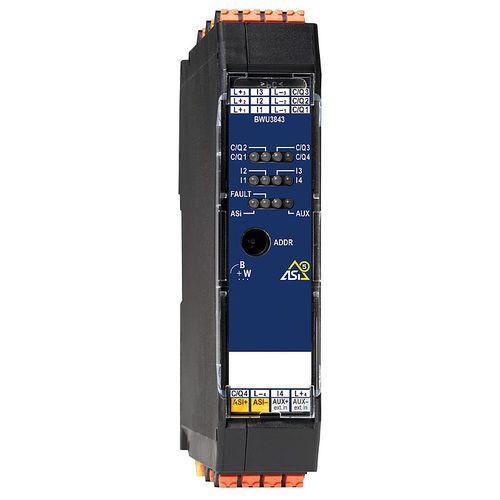

Digital I/O module BWU3843

ASiIO-Linkcurrent

ASi-5 Module with integrated IO-Link Master in IP20, 22,5 mm x 114 mm, with 4 contacts, 4 x IO-Link ports with configurable conectors for port class A or port class B, sensor supply (IO-Link supply and input/output supply) out of AUX, periphery connection via Push-in terminals, ASi connection via Push-in terminals, 1 ASi-5 address, optimal application in the main control cabinet Terminal assignment (C/Q, L+, L-, I) compatible with pin assignment of IO-Link port class A (M12). Connected IO-Link devices with port class B (M12) with a higher current consumption have to be supplied directly via a separate power supply. Compatible with 3 pol IO-Link devices (M8). Technical data Number of IO-Link Ports - 4 IO-Link Port Class A - configurable conectors IO-Link Port Class B - configurable conectors Inputs/outputs - 4 x C/Q + 4 x I Sensor supply (IO-Link supply and input/output supply) - out of AUX Actuator supply (for IO-Link ports class B) - out of AUX Flat design, installation in cable duct possible - no Connection - push in terminals ASi connection - Push-in terminals ASi address - 1 ASi-5 address
