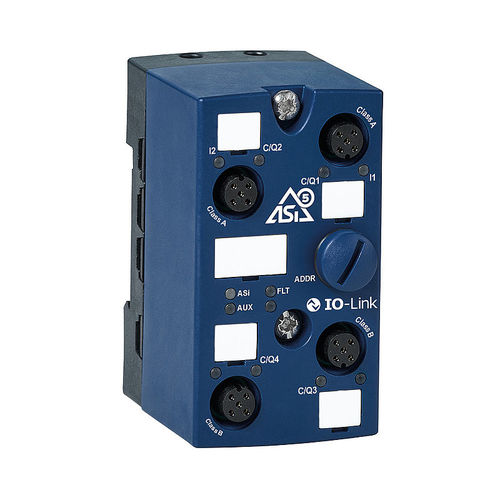

Digital I/O module BWU4067

ASiIO-Linkduct

ASi-5 Module with integrated IO-Link Master in IP67, with 4 x M12 sockets, 2 x IO-Link ports class A, 2 x IO-Link ports class B, sensor supply (IO-Link supply and input/output supply) out of AUX, actuator supply (for IO-Link ports class B) out of AUX, periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 ASi-5 address The substructure module is not included in the scope of delivery. Technical data Number of IO-Link Ports - 4 IO-Link Port Class A - 2 IO-Link Port Class B - 2 Inputs/outputs - 4 x C/Q + 2 x I Sensor supply (IO-Link supply and input/output supply) - out of AUX Actuator supply (for IO-Link ports class B) - out of AUX Flat design, installation in cable duct possible - no Connection - 4 x M12 sockets, 5 poles ASi connection - ASi profile cable ASi address - 1 ASi-5 address
