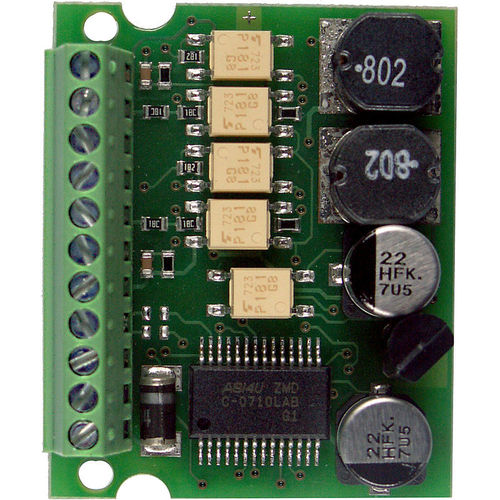

Digital I/O card BWR1443ASivoltage2 digital inputs
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Bus
- ASi
- Applications
- voltage
- Number of inputs/outputs
- 2 digital inputs
- Mounting
- PCB
Description
ASi PCB Module, 29,7 mm x 36,5 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 80 mA for sensor supply, max. 80 mA per output, periphery connection via screw terminals, ASi connection via screw terminals, 1 AB address
Technical data
Circuit board dimensions - 29,7 mm x 36,5 mm
Inputs digital - 2
Outputs digital - 2 x electronic
Input voltage (sensor supply) - out of ASi
Output voltage (actuator supply) - out of ASi
PCB connection - screw terminals
Coating - no
ASi connection - screw terminals
ASi address - 1 AB address
