Digital I/O card BWR4736ASi16 digital inputs16 digital outputs
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Interface
- ASi
- Number of inputs/outputs
- 16 digital inputs, 16 digital outputs
- Applications
- voltage
- Mounting
- PCB
Description

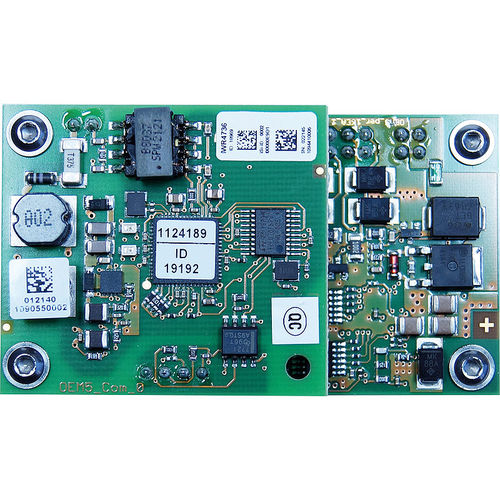

ASi-5 PCB Module, 70 mm x 40 mm, up to 16 digital inputs, up to 16 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, max. 350 mA per output, periphery connection via wiring pins, straight, LED, ASi connection via wiring pins, straight, 1 ASi-5 address
Technical data
Circuit board dimensions - 70 mm x 40 mm
Inputs digital - up to 16, depending on configuration
Outputs digital - up to 16 x electronic, depending on configuration
Input voltage (sensor supply) - out of AUX
Output voltage (actuator supply) - out of AUX
PCB connection - wiring pins, straight
Coating - no
ASi connection - wiring pin, straight
ASi address - 1 ASi-5 address
