24 V controller for centralized lubrication system SMDC

12 V

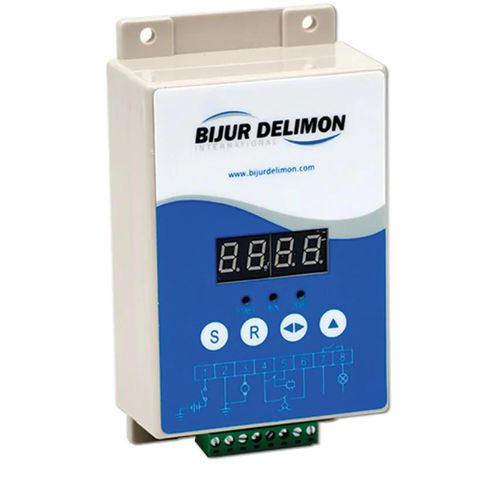

The SMDC Mobile Controller is a multi-purpose programmable controller used with on-board mobile lubrication systems. The unit is energized by the vehicle or machine’s ignition switch. Controller settings are saved whenever power is interrupted. Up to four operating modes can be selected which allows the controller to be used with various lubrication system designs. A voltage selector switch is located inside the enclosure for both 12 and 24 VDC service. Features + Digital status display on front cover for easy programming + System monitoring capabilities + Data memory function initiated at power down + Compact design Installation Mount the controller in a clean area with easy access for programming and visual checking. Mount controller on a fl at surface.
