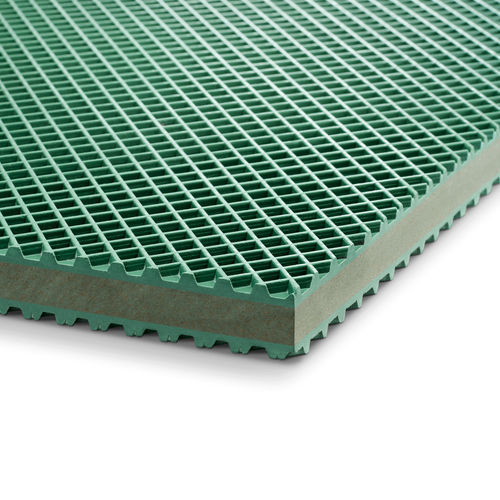

Load-bearing anti-vibration pad TYPE B32W

Very soft insulation pad with profile and very high insulation effect. Suitable for machines with low dynamics. GENERAL PRODUCT DESCRIPTION Description insulation pad Super soft insulation pad Comparable with B30, but with improved insulation effect. TECHNICAL DATA AND VARIANTS Note Bilz insulation pads can be cut with any circular or band saw. We are happy to supply special sizes on request. The specified maximum load is composed of static and dynamic loading of the machine. The best insulation effect is achieved at approximately 80-90 % of the specified maximum load. Can also be supplied with a profile on one side (designated for example B4-1). The stated coefficient of friction refers to conventional industrial screed. Cutting tolerance is according to DIN 7715/T5, class P3. Load 35-70 N/cm² Height 25 mm Coefficient of friction 0.8
