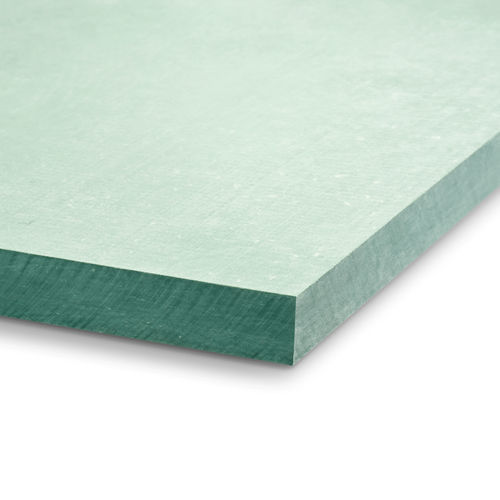

Load-bearing anti-vibration pad TYPE B50

Insulation pad for machines having high machine dynamics and only a small contact surface, e.g. presses, punches, shears etc. GENERAL PRODUCT DESCRIPTION Description insulation pad For machines subject to very high dynamic disturbing force, such as presses, punches, shears etc. TECHNICAL DATA AND VARIANTS Note Bilz insulation pads can be cut with any circular or band saw. We are happy to supply special sizes on request. The specified maximum load is composed of static and dynamic loading of the machine. The best insulation effect is achieved at approximately 80-90 % of the specified maximum load. Can also be supplied with a profile on one side (designated for example B4-1). The stated coefficient of friction refers to conventional industrial screed. Cutting tolerance is according to DIN 7715/T5, class P3. Load 50-200 N/cm² Height 25 mm Coefficient of friction 0.8
