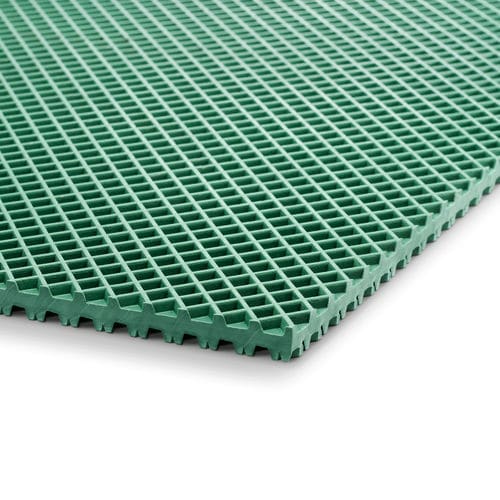

Load-bearing anti-vibration pad TYPE B13W

Insulation pad for the highest insulation values, can be stacked up to 6 times, perfectly suitable as a pad set for foundation insulation. GENERAL PRODUCT DESCRIPTION Description insulation pad Insulation pad for the highest insulation values. Can be stacked up to 6 times. Matching up to approximately 25 Hz (up to 8 Hz if used in an isolation pad set). Perfectly suited as a pad set for foundation insulation. TECHNICAL DATA AND VARIANTS Note Bilz insulation pads can be cut with any circular or band saw. We are happy to supply special sizes on request. The specified maximum load is composed of static and dynamic loading of the machine. The best insulation effect is achieved at approximately 80-90 % of the specified maximum load. Can also be supplied with a profile on one side (designated for example B4-1). The stated coefficient of friction refers to conventional industrial screed. Cutting tolerance is according to DIN 7715/T5, class P3. Load 5-40 N/cm² Height 13 mm Coefficient of friction 0.8
