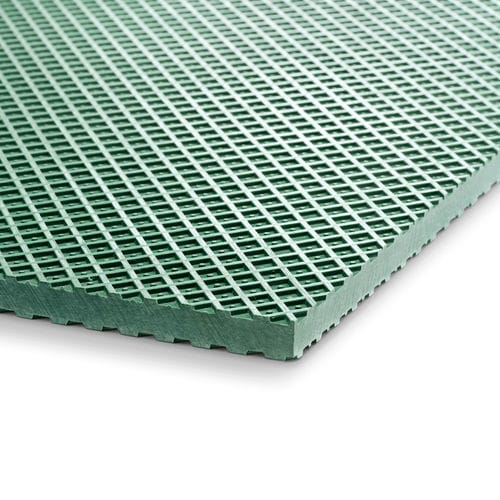

Load-bearing anti-vibration pad TYPE B4

Universally applicable insulation pad variant for machine tools, plastic and printing machines. Very well suited for machines that tend to "wander". GENERAL PRODUCT DESCRIPTION Description insulation pad High universal variant. Can be used for machine tools, plastic machines and printing machines. Very well suited for machines with a tendency to “wander”. TECHNICAL DATA AND VARIANTS Note Bilz insulation pads can be cut with any circular or band saw. We are happy to supply special sizes on request. The specified maximum load is composed of static and dynamic loading of the machine. The best insulation effect is achieved at approximately 80-90 % of the specified maximum load. Can also be supplied with a profile on one side (designated for example B4-1). The stated coefficient of friction refers to conventional industrial screed. Cutting tolerance is according to DIN 7715/T5, class P3. Load 30-100 N/cm² Height 15 mm Coefficient of friction 0.8
