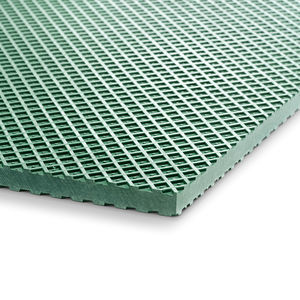

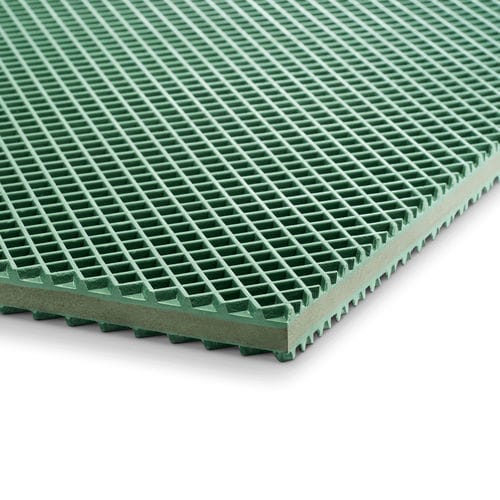

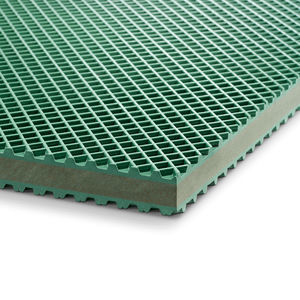

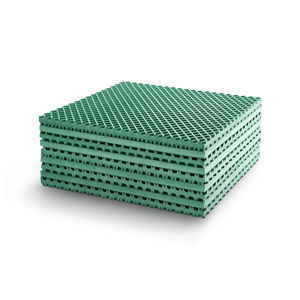

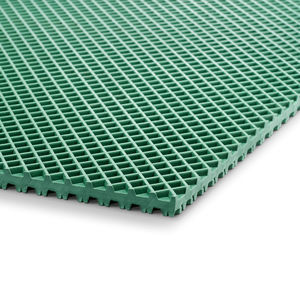

Load-bearing anti-vibration pad TYPE B30W

Very soft insulation pad for static applications providing optimum insulation through low frequency matching, such as for measuring and inspection machines, scales, microscopes. GENERAL PRODUCT DESCRIPTION Description insulation pad Very soft insulation pad. Optimum insulation through low-frequency matching, such as for measuring machines and inspection machines, scales and microscopes. TECHNICAL DATA AND VARIANTS Note Bilz insulation pads can be cut with any circular or band saw. We are happy to supply special sizes on request. The specified maximum load is composed of static and dynamic loading of the machine. The best insulation effect is achieved at approximately 80-90 % of the specified maximum load. Can also be supplied with a profile on one side (designated for example B4-1). The stated coefficient of friction refers to conventional industrial screed. Cutting tolerance is according to DIN 7715/T5, class P3. Load 5-40 N/cm² Height 18 mm Coefficient of friction 0.8
