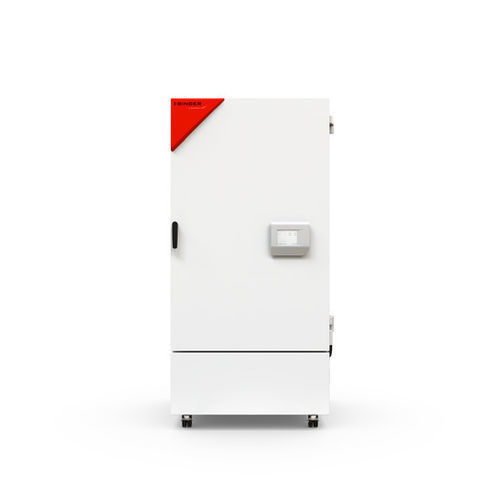

Thermostatic test chamber KBF PRO 470

climatichumiditytemperature

Product description
A powerful all-rounder among constant climate chambers: Equipped with all kinds of sophisticated technology, the KBF PRO takes any material test in its stride – whether it takes place at -20°C or under THB conditions at +85°C and 85% relative humidity. It offers flexible water supply options for all installation sites and consumes up to 40% less energy than its predecessor, the KMF model. Optional light modules are also available to turn the KBF PRO into a chamber for ICH photostability testing or plant growth.

Benefits

• Reliable and powerful thanks to innovative temperature control technology
• Reliable: failsafe operation over the long term thanks to proven compressor technology and inner chamber made of stainless steel
• Smart: signal triangle with light-up status display, ergonomic control terminal with touchscreen program controller, rack with telescopic rails
• Efficient: low energy consumption thanks to modern inverter cooling technology

Important characteristics

• Temperature range: -20 °C to +100 °C
• Humidity range: 10% to 98% RH
• Proven APT.line™ preheating chamber technology
• Energy-efficient cooling with modern inverter cooling unit
• Cooling with climate-neutral R-290 refrigerant
• Door heating to prevent condensation
• Adjustable fan speed
• Humidity regulation with capacitive humidity sensor and responsive steam humidification
• Sturdy housing design with HIT sandwich technology
• Stainless-steel inner chamber
• Inner doors made of metal oxide-coated safety glass
• Two racks made of stainless steel with telescopic rails
• 80 mm x 45 mm access port with silicone plug
• Floor-standing units featuring sturdy twin casters with brakes at the front
• Intuitive touchscreen controller with time-segment and real-time programming
• Ergonomically adjustable operating terminal
• Signal triangle with light-up status display
• Internal data logger, measured values can be read out in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ basic edition
• Optional light modules for ICH photostability tests
• Optional LED light modules for plant growth

Key product data (selected table values)
Article Number: 9020-0441
Designation: KBFPRO470-230V
Option model: Standard

Performance data – temperature
Temperature range: -20...100 °C
Max. heat compensation at 40 °C: 800 W

Performance data – climate
Temperature range with humidity: 10...90 °C
Humidity range: 10...98 % RH
Temperature uniformity at 25 °C and 60% RH: 0.3 ± K
Temperature uniformity at 40 °C and 75% RH: 0.3 ± K
Temperature fluctuation at 25 °C and 60% RH: 0.1 ± K
Temperature fluctuation at 40 °C and 75% RH: 0.1 ± K
Humidity fluctuation at 25 °C and 60% RH: 1 ± % RH
Humidity fluctuation at 40 °C and 75% RH: 1 ± % RH
Recovery time after door opened 30 s at 25 °C / 60% RH: 2 min
Recovery time after door opened 30 s at 40 °C / 75% RH: 4 min

Electrical data
Rated Voltage: 208...240 V
Power frequency: 50/60 Hz
Nominal power: 1.6 kW
Unit fuse: 16.0 A
Phase (Nominal voltage): 1~

Dimensions & weights
Interior volume: 472 L
Net weight (empty): 249 kg
Load per rack: 40 kg
Permitted load: 200 kg
Wall clearance back: 100 mm
Wall clearance sidewise: 180 mm

Housing dimensions (net)
Width net: 930 mm
Height net: 1,951 mm
Depth net: 900 mm

Internal dimensions
Interior width: 656 mm
Interior height: 1,250 mm
Interior depth: 575 mm
Inner doors: 1
Unit doors: 1

Environment-specific data
Sound-pressure level at 25 °C and 60% RH: 50 dB(A)
Energy consumption at 25 °C and 60% RH: 245 Wh/h
Energy consumption at 40 °C and 75% RH: 295 Wh/h
Energy consumption at 85 °C and 85% RH: 455 Wh/h

Fixtures
Number of shelves (std./max.): 2/16
