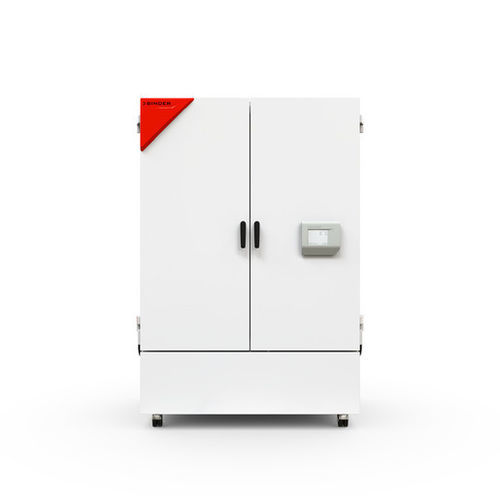

Thermostatic test chamber KBF PRO 1060

climatichumiditytemperature

Product description
The KBF PRO 1060 is a constant climate chamber for materials testing and process simulation across an extended temperature and humidity range. Designed for floor-standing installation, it supports tests from low-temperature conditions to THB profiles and can be equipped with optional LED plant-light modules for growth applications.

Benefits

• Precise temperature control across a wide operating range
• Robust long-term operation thanks to proven compressor technology and stainless-steel inner chamber
• User-friendly operation with touchscreen program controller and illuminated status signal triangle
• Energy-efficient operation with modern inverter cooling and climate-neutral R-290 refrigerant

Important characteristics

• Temperature range (dry): -20 °C to +100 °C
• Humidity control range: 10 % to 98 % RH
• APT.line™ preheating chamber technology
• Inverter cooling unit for reduced energy consumption
• Cooling with climate-neutral R-290 refrigerant
• Door heating to avoid condensation
• Adjustable fan speed and responsive steam humidification
• Stainless-steel inner chamber and metal-oxide coated safety-glass inner doors
• Telescopic rails on two stainless-steel racks (standard)
• Access port 80 mm × 45 mm (silicone plug)
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, exportable in open format via USB; Ethernet and USB interfaces
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms

Data
Article Number: 9020-0443
Designation: KBFPRO1060-230V
Option model: Standard

Performance Data - Temperature
Temperature range: -20...100 °C
Max. heat compensation at 40 °C: 1,000 W

Performance Data - Climate
Temperature range with humidity: 10...90 °C
Humidity range: 10...98 % RH
Temperature uniformity at 25 °C and 60% RH: 0.3 ± K
Temperature uniformity at 40 °C and 75% RH: 0.3 ± K
Temperature fluctuation at 25 °C and 60% RH: 0.1 ± K
Temperature fluctuation at 40 °C and 75% RH: 0.1 ± K
Humidity fluctuation at 25 °C and 60% RH: 1 ± % RH
Humidity fluctuation at 40 °C and 75% RH: 1 ± % RH
Recovery time after 30 s door opening at 25 °C and 60% RH: 2 min
Recovery time after 30 s door opening at 40 °C and 75% RH: 6 min

Electrical data
Rated Voltage: 208...240 V
Power frequency: 50/60 Hz
Nominal power: 1.9 kW
Unit fuse: 16.0 A
Phase (Nominal voltage): 1~

Dimensions and weights
Interior volume: 1,070 L
Net weight (empty): 360 kg
Load per rack: 40 kg
Permitted total load: 200 kg
Wall clearance back/side: 180 mm / 180 mm

Housing dimensions (not incl. fittings and connections)
Width net: 1,285 mm
Height net: 1,951 mm
Depth net: 1,175 mm

Internal Dimensions
Interior width: 1,011 mm
Interior height: 1,250 mm
Interior depth: 847 mm
Inner doors: 2
Unit doors: 2

Environment-specific data
Sound-pressure level at 25 °C and 60% RH: 50 dB(A)
Energy consumption at 25 °C and 60% RH: 400 Wh/h
Energy consumption at 40 °C and 75% RH: 450 Wh/h
Energy consumption at 85 °C and 85% RH: 665 Wh/h

Fixtures
Number of shelves (std./max.): 2/16

Accessories & Options (selection)

• Coated heat exchanger (for corrosive samples)
• Reinforced inner chamber (permitted load with U rails 300 kg)
• Door lock / electromechanical door lock (PIN via controller)
• Interior climate-resistant LED lighting
• Swivel casters, height-adjustable
• Shipping pallet with unloading ramp
• Access ports with silicone plugs (various positions and diameters)
• Analog output 4-20 mA for temperature/humidity
• Specimen temperature display (flexible Pt100 sensor)
• Calibration and qualification services (multiple certificate/point options)
• CO₂ gassing and control modules
• LED plant light module and LED light bars (basic and expansion sets)
• Water supply systems and PURE AQUA service

Technical specifications

• Article number: 9020-0443
• Model name / commercial designation: KBF PRO 1060
• Product code: KBFPRO1060-230V
• Temperature range (without humidity): -20…100 °C
• Temperature range with humidity: 10…90 °C
• Humidity range: 10…98 % RH
• Max. heat compensation at 40 °C: 1,000 W
• Nominal power: 1.9 kW
• Rated voltage: 208…240 V, 50/60 Hz, single phase
• Interior usable volume: 1,070 L
• Net weight (empty): 360 kg
• Interior dimensions (W×H×D): 1,011 mm × 1,250 mm × 847 mm
• Unit footprint dimensions (W×H×D): 1,285 mm × 1,951 mm × 1,175 mm
• Load per rack: 40 kg; permitted total load: 200 kg
• Number of shelves (std./max.): 2 / 16
• Access port: 80 mm × 45 mm (silicone plug)
• Temperature uniformity: 0.3 K (25 °C / 60% RH and 40 °C / 75% RH)
• Temperature fluctuation: 0.1 K (25 °C / 60% RH and 40 °C / 75% RH)
• Humidity fluctuation: 1 % RH (25 °C / 60% RH and 40 °C / 75% RH)
• Cooling technology: inverter cooling unit, R-290 refrigerant
• Preheating technology: APT.line™ preheating chamber
• Inner chamber material: stainless steel
• Controller: intuitive touchscreen with time-segment and real-time programming
• Safety: Class 3.3 independent temperature safety device (DIN 12880)
• Data logger: internal, export via USB; interfaces: Ethernet, USB
