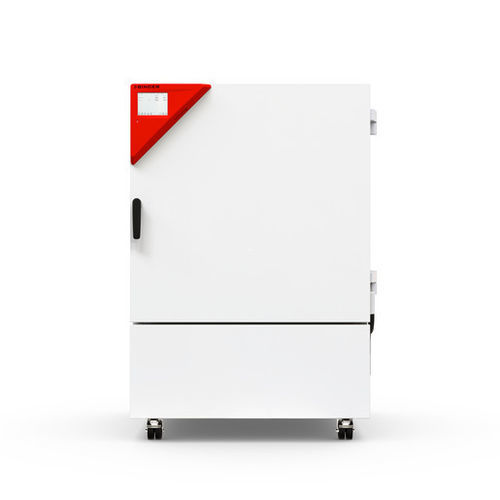

Thermostatic test chamber KBF PRO 260

climatichumiditytemperature

Product description
A powerful all-rounder among constant climate chambers: Equipped with all kinds of sophisticated technology, the KBF PRO takes any material test in its stride – whether it takes place at -20°C or under THB conditions at +85°C and 85% relative humidity. It offers flexible water supply options for all installation sites and consumes up to 40% less energy than its predecessor, the KMF model. Optional light modules are also available to turn the KBF PRO into a chamber for ICH photostability testing or plant growth.

Benefits

• Reliable and powerful thanks to innovative temperature control technology
• Reliable: failsafe operation over the long term thanks to proven compressor technology and inner chamber made of stainless steel
• Smart: signal triangle with light-up status display, ergonomic control terminal with touchscreen program controller, rack with telescopic rails
• Efficient: low energy consumption thanks to modern inverter cooling technology

Important characteristics

• Temperature range: -20 °C to +100 °C
• Humidity range: 10% to 98% RH
• Proven APT.line™ preheating chamber technology
• Up to 40% lower energy consumption compared to the previous model
• Energy-efficient cooling with modern inverter cooling unit
• Cooling with climate-neutral R-290 refrigerant
• Door heating to prevent condensation
• Adjustable fan speed
• Humidity regulation with capacitive humidity sensor and responsive steam humidification
• Sturdy housing design with HIT sandwich technology
• Stainless-steel inner chamber
• Inner doors made of metal oxide-coated safety glass
• Two racks made of stainless steel with telescopic rails
• 80 mm x 45 mm access port with silicone plug
• Floor-standing units featuring sturdy twin casters with brakes at the front
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ basic edition
• Optional light modules for ICH photostability tests
• Optional LED light modules for plant growth

Technical data (selected tables)
Data
Article Number: 9020-0440
Designation: KBFPRO 260-230V
Option model: Standard

Performance Data Temperature
Article Number: 9020-0440
Temperature range: -20...100 °C
Max. heat compensation at 40°C: 800 W

Performance Data Climate
Article Number: 9020-0440
Temperature range with humidity: 10...90 °C
Humidity range: 10...98 % RH
Temperature uniformity at 25°C and 60% RH: 0.2 ± K
Temperature uniformity at 40°C and 75% RH: 0.2 ± K
Temperature fluctuation at 25°C and 60% RH: 0.1 ± K
Temperature fluctuation at 40°C and 75% RH: 0.1 ± K
Humidity fluctuation at 25°C and 60% RH: 1 ± % RH
Humidity fluctuation at 40°C and 75% RH: 1 ± % RH
Recovery time after door was opened for 30 s at 25°C and 60% RH: 2 min
Recovery time after door was opened for 30 s at 40°C and 75% RH: 3 min

Electrical data
Article Number: 9020-0440
Rated Voltage: 208...240 V
Power frequency: 50/60 Hz
Nominal power: 1,6 kW
Unit fuse: 16,0 A
Phase (Nominal voltage): 1~

Dimensions and weights
Article Number: 9020-0440
Interior volume: 262 L
Net weight of the unit (empty): 197 kg
Load per rack: 40 kg
Permitted load: 200 kg
Wall clearance back: 100 mm
Wall clearance sidewise: 180 mm

Housing dimensions (not incl. fittings and connections)
Article Number: 9020-0440
Width net: 930 mm
Height net: 1,396 mm
Depth net: 900 mm

Internal Dimensions
Article Number: 9020-0440
Interior width: 656 mm
Interior height: 695 mm
Interior depth: 575 mm
Inner doors: 1
Unit doors: 1

Environment-specific data
Article Number: 9020-0440
Sound-pressure level at 25°C and 60% RH: 48 dB(A)
Energy consumption at 25°C and 60% RH: 235 Wh/h
Energy consumption at 40°C and 75% RH: 260 Wh/h
Energy consumption at 85°C and 85% RH: 375 Wh/h

Fixtures
Article Number: 9020-0440
Number of shelves (std./max.): 2/9

Options / Accessories (selection)

• Coated heat exchanger (8012-2583)
• Inner chamber, reinforced (8012-2525)
• Door lock / electromechanical door lock (8012-2538 / 8012-2540)
• Interior lighting (8012-2562)
• Swivel casters, height-adjustable (8012-2544)
• Access ports with silicone plug (various sizes and positions 8012-2491, 8012-2494, 8012-2496, 8012-2492...)
• Analog output 4-20 mA for temperature and humidity (8012-2375)
• Specimen temperature display (8012-2554)
• CO₂ gassing / control modules and installation services (8012-2138, 8012-2140, DL10-0130)
• Light modules for ICH photostability and LED plant light modules (8012-2441, 8012-2443, 8012-2439)
• Calibration and qualification services (various certificates and measuring-point options)

Technical specifications (summary)

• Model: KBF PRO 260
• Temperature range: -20 °C to +100 °C
• Humidity range: 10% to 98% RH (with humidity)
• Interior usable volume: 262 L
• Interior dimensions (W×H×D): 656 × 695 × 575 mm
• Net weight (empty): 197 kg
• Rated voltage: 208...240 V, 50/60 Hz
• Nominal power: 1.6 kW
• Energy consumption (25°C / 60% RH): 235 Wh/h
• Signal triangle status display; touchscreen program controller with time-segment and real-time programming
• Stainless-steel inner chamber; inner safety glass doors; two stainless-steel racks with telescopic rails (load per rack 40 kg)
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Data interfaces: Ethernet, USB; internal data logger, open format via USB
