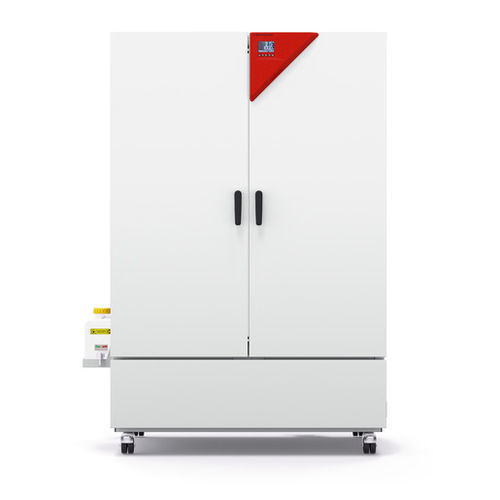

Climate chamber KBF-S ECO 720

humiditytemperatureenvironmental

Product description
The KBF-S ECO 720 is a constant climate chamber using Peltier thermoelectric cooling with patented heat dissipation. Designed for energy-efficient and low-noise operation, it is suitable for laboratories and industrial quality-control environments requiring controlled temperature and humidity in a 700 L interior.

Benefits

• Compliant testing according to ICH Q1A guideline, ensuring safe operation even at full load.
• Built for reliable, fail-safe operation and continuous status monitoring.
• Modular and adaptable: wide range of accessories for specific customer requirements.
• Low energy consumption thanks to optimized thermoelectric cooling.

Important characteristics

• Temperature range: 0 °C to +70 °C (max. 24 °C under ambient temperature)
• Humidity range: 10 % to 80 % RH (with humidity control: 5...70 °C)
• APT.line™ preheating chamber technology
• Independent water supply via tank
• LCD for temperature, humidity, alarms and additional information
• Internal data logger; measured values readable in open format via USB
• Unit self-test for comprehensive status analysis
• Inner chamber fully stainless steel; standard: 2 stainless steel racks (expandable)
• Access port with silicone plug Ø 30 mm (left)
• Computer interface: Ethernet

Technical specifications (highlights)
Article numbers: 9020-0418 (230 V) / 9020-0421 (120 V)
Designation: KBFSECO720-230V / KBFSECO720UL-120V
Interior volume: 700 L
Temperature range (general): 0...70 °C (max. 24 °C under ambient)
Humidity range: 10...80 % RH
Temperature uniformity (25 °C / 60 % RH): 0.1 ± K
Temperature fluctuation (25 °C / 60 % RH): 0.1 ± K
Sound-pressure level: 48 dB(A)
Nominal power: 1.2 kW
Net weight (empty): 267 kg
Energy consumption (25 °C / 60 % RH): 90 Wh/h


Characteristics / Technical specifications (summary)

• Model: KBF-S ECO 720
• Article numbers: 9020-0418 (230 V), 9020-0421 (120 V)
• Temperature range: 0...70 °C (with humidity control: 5...70 °C)
• Humidity range: 10...80 % RH
• Interior volume: 700 L; inner chamber in stainless steel
• Standard shelves: 2 (expandable up to 15)
• Max. load per rack: 45 kg; permitted total load: 150 kg
• Interfaces: Ethernet; internal data logger with USB export (open format)
• Options & accessories: calibration certificates, access ports (30/50/100 mm), LED lighting kits, PURE AQUA service, racks and shelves, qualification documents and service contracts
