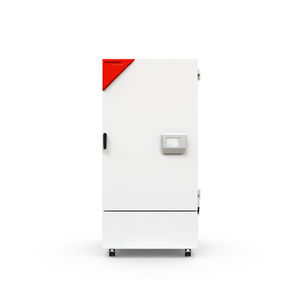

Thermostatic test chamber KBF PRO 720

climatictemperaturephotostability

Product description
The KBF PRO 720 is a constant climate chamber for material testing and stability studies with an operating range from -20 °C to +100 °C and humidity control up to 98 % RH. It supports THB conditions (e.g. +85 °C / 85 % RH), offers flexible water supply options for different installation sites and reduces energy consumption by up to 40 % compared with the previous KMF model. Optional light modules enable ICH photostability testing or plant growth applications.

Benefits

• Precise temperature control across a wide range with proven preheating technology
• Reliable long-term operation using established compressor systems and a stainless-steel inner chamber
• Ergonomic operation and status feedback via touchscreen controller and illuminated signal triangle
• Energy-efficient operation using modern inverter cooling and R-290 refrigerant

Important characteristics

• Temperature range: -20 °C to +100 °C
• Humidity range: 10 % to 98 % RH (with humidity mode)
• APT.line™ preheating chamber technology
• Door heating to avoid condensation; adjustable fan speed
• Capacitive humidity sensor with fast steam humidification
• Stainless-steel inner chamber and inner doors of metal-oxide-coated safety glass
• HIT sandwich housing technology and sturdy twin casters (front brakes)
• Touchscreen controller, internal data logger, Ethernet and USB interfaces
• Class 3.3 temperature safety device (DIN 12880) with visual and acoustic alarms
• Optional ICH and LED light modules, CO₂ injection modules and calibration/service options

Data (summary)
Article Number: 9020-0442
Designation: KBFPRO720-230V
Option model: Standard

Performance Data – Temperature (selected)
Temperature range: -20...100 °C
Max. heat compensation at 40 °C: 1,000 W

Performance Data – Climate (selected)
Temperature range with humidity: 10...90 °C
Humidity range: 10...98 % RH
Temperature uniformity at 25 °C and 60 % RH: 0.3 ± K
Temperature uniformity at 40 °C and 75 % RH: 0.3 ± K
Temperature fluctuation at 25 °C and 60 % RH: 0.1 ± K
Temperature fluctuation at 40 °C and 75 % RH: 0.1 ± K
Humidity fluctuation at 25 °C and 60 % RH: 1 ± % RH
Humidity fluctuation at 40 °C and 75 % RH: 1 ± % RH
Recovery time after door opened 30 s at 25 °C / 60 % RH: 2 min
Recovery time after door opened 30 s at 40 °C / 75 % RH: 5 min

Electrical data (selected)
Rated Voltage: 208...240 V
Power frequency: 50/60 Hz
Nominal power: 1.8 kW
Unit fuse: 16.0 A
Phase (Nominal voltage): 1~

Dimensions & Weights (selected)
Interior volume: 727 L
Net weight (empty): 312 kg
Load per rack: 40 kg
Permitted load: 200 kg
Width net: 1,285 mm
Height net: 1,951 mm
Depth net: 900 mm
Interior width: 1,011 mm
Interior height: 1,250 mm
Interior depth: 575 mm

Environment-specific data (selected)
Sound-pressure level at 25 °C and 60 % RH: 50 dB(A)
Energy consumption at 25 °C and 60 % RH: 390 Wh/h
Energy consumption at 40 °C and 75 % RH: 435 Wh/h
Energy consumption at 85 °C and 85 % RH: 600 Wh/h

Fixtures (selected)
Number of shelves (std./max.): 2/16

Note
The information above consolidates product highlights, selected technical data and typical accessory references available on the product page.
