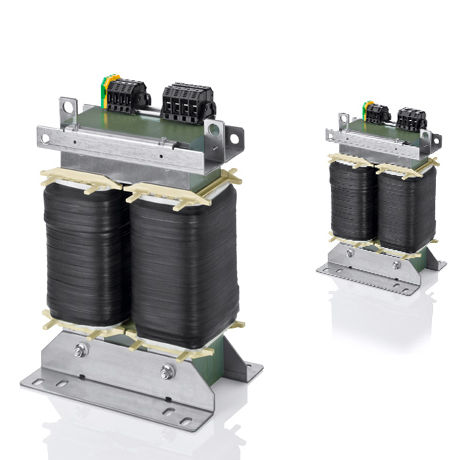

Isolation transformer TT1 series cast resinsafetycontrol
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- cast resin
- Other characteristics
- safety, control
- Primary voltage
Min.: 219 V
Max.: 420 V
- Secondary voltage
24 V, 42 V, 215 V
- Primary current
Min.: 4.3 A
Max.: 41.7 A
Description
General Data
Rated input voltage 219 Vac ‑ 525 Vac
Rated output voltage 24, 42, 2 x 115 Vac
Rated power 1000 ‑ 25000 VA
Insulation class F
Maximum ambient temperature 40 °C
Efficiency up to 98 %
Degree of protection IP 00, IPXXB on request
Optionally adapted package for higher degrees of protection
Advantages
Safe galvanic isolation
Patented assembly technology
Very good corrosion protection and low noise thanks to vacuum impregnation
Primary side ±5 % tappings for voltage adjustment
Fixed, contact protected screw connection terminals complying with UVV BGV A3
Multifunctional fixing rail with 8 oval slots
Space saving, thanks to horizontal design
Integrated crane eyes
Non‑slip terminals
