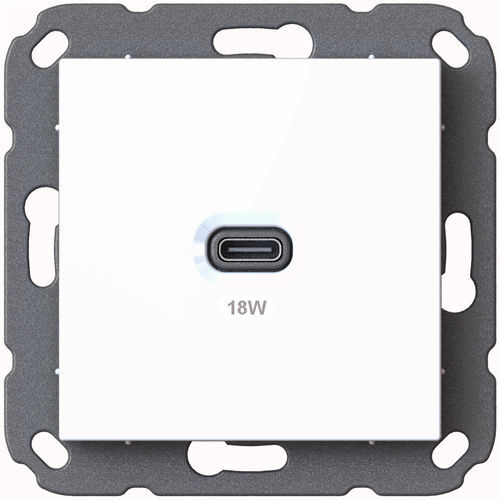

Built-in electrical socket 6560x0200
Add to favorites
Compare this product
Characteristics
- Mounting
- built-in
Description
Product description
Safety and warnings
DANGER! Risk of fatal electric shock or fire. Installation, connection and mounting may only be performed by a qualified electrician. Technical data and country-specific regulations must be observed. Common safety rules, such as the '5 safety rules', must be followed. CAUTION! Failure to follow the operating instructions may result in damage to the device, fire or other hazards. Do not operate damaged devices; they must be taken out of service immediately. Operate the charger only in dry indoor environments. Avoid operation under adverse environmental conditions (e.g., relative humidity over 80%, ambient temperatures above 35°C, flammable gases, dust, vapours). Always operate with the cover in place.
Technical properties / product table
Connection: Screw terminal
Mounting type: Flush-mounted
Color: White
Size: Single unit packaging
Frame: without frame
Features / Technical specifications
- Flush-mounted USB-C insert with cover for standard flush-mount boxes Ø 65 mm with device screws, installation according to DIN 49073
- Compatible with 55 switch programs (frame inner dimension 55x55 mm), white, RAL9010 (e.g., Busch Balance SI from Busch-Jaeger or Standard 55 from GIRA, etc.)
- 18 Watt Power Delivery fast-charge function, suitable for laptops, tablets, smartphones, smartwatches and other small electronic devices with USB-C port
- Variable power adjustment: up to 18 W
- Supports charging protocols such as QC2.0/QC3.0, FCP, AFC, BC1.2, APPLE
- Screw terminals for connecting wires in building installations up to max. 2.5 mm² - for easy daisy-chaining in multiple frames
Safety and warnings
DANGER! Risk of fatal electric shock or fire. Installation, connection and mounting may only be performed by a qualified electrician. Technical data and country-specific regulations must be observed. Common safety rules, such as the '5 safety rules', must be followed. CAUTION! Failure to follow the operating instructions may result in damage to the device, fire or other hazards. Do not operate damaged devices; they must be taken out of service immediately. Operate the charger only in dry indoor environments. Avoid operation under adverse environmental conditions (e.g., relative humidity over 80%, ambient temperatures above 35°C, flammable gases, dust, vapours). Always operate with the cover in place.
Technical properties / product table
Connection: Screw terminal
Mounting type: Flush-mounted
Color: White
Size: Single unit packaging
Frame: without frame
Features / Technical specifications
- Power: up to 18 W (Power Delivery fast-charge)
- Supported protocols: QC2.0, QC3.0, FCP, AFC, BC1.2, APPLE
- Compatibility: 55 switch programs, frame inner dimension 55x55 mm
- Installation: according to DIN 49073
- Terminal connection: Screw terminals, max conductor cross-section 2.5 mm²
- Color: White (RAL9010)
- Product number: 6560x0200
- Availability: Immediately available, delivery time: 2-5 days
