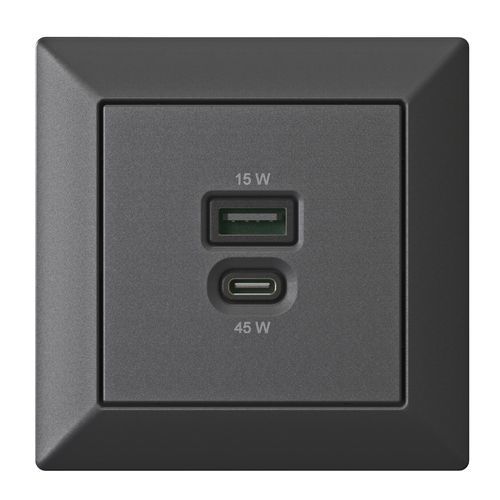

Built-in electrical socket 6520x0101

Product description
Connector type: USB Type C & A
Compatible devices: tablets, laptops, phones, smartwatches
Compatible phone models: all devices that charge via USB-C or USB-A.

Included components

• USB-C / USB-A flush-mounted charging unit
• Central faceplate
• Frame

Features
Fast charging; Input voltage: 230 V AC; Mounting type: flush-mounted.

- USB-C + USB-A flush insert with cover and frame in matte black (RAL 9005) for all standard flush boxes Ø 65 mm with device screws; installation according to DIN 49073.
- Compatible with 55 mm switch programs (frame inner dimension 55x55 mm), e.g. Busch Balance SI by Busch-Jaeger or Standard 55 by GIRA.
- 45 W USB-C and 15 W USB-A Power Delivery fast-charge function, suitable as a charging station for laptops, tablets, smartphones, smartwatches and other small electronic devices with USB-C port. Suitable for installation in kitchens, living rooms, bedrooms, hallways and other indoor spaces.
- Wire connection up to max. 2x2.5 mm² possible, simple loop-through connection also in multi-frames.
- Note on maximum charging power: use original / PD-capable charging cables recommended.

Technical specifications

• Connection: screw terminal
• Mounting types: flush-mounted
• Color: matte black (RAL 9005)
• Package size: single unit
• Frame: with frame
• Input voltage: 230 V AC
• Max USB-C charging power: 45 W (profiles: 5 V / 3 A = 15 W; 9 V / 3 A = 27 W; 12 V / 3 A = 36 W; 15 V / 3 A = 45 W; 20 V / 2.25 A = 45 W)
• Max USB-A charging power: 15 W (5 V / 3 A)
• Installation: for standard flush boxes Ø 65 mm with device screws, installation according to DIN 49073
• Wire connection: up to 2x2.5 mm²
