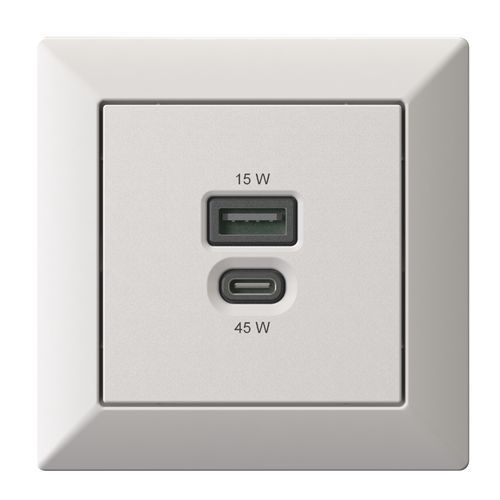

Built-in electrical socket 6560x0101mw

Product description

• Device type: Flush-mounted USB charging unit with USB-C and USB-A ports
• Included: flush insert, central cover plate and frame
• Compatible devices: tablets, laptops, smartphones, smartwatches

Installation
Flush-mounted insert with cover plate and matt-white frame (RAL 9010) for standard flush boxes Ø 65 mm, installation according to DIN 49073. Compatible with 55x55 mm frame inner dimensions (compatible with 55-series switch programs, e.g. Busch Balance SI, GIRA Standard 55 and similar). For indoor dry locations only. Mount using device screws according to local installation rules.

Electrical data

• Input voltage: 230 V AC
• Terminal type: screw clamp
• Wiring: up to 2x2.5 mm², suitable for simple onward wiring in multi-gang frames

Charging performance / power configuration

• USB-C: up to 45 W (Power Delivery). Supported voltage/current levels: 5V/3A (15W), 9V/3A (27W), 12V/3A (36W), 15V/3A (45W), 20V/2.25A (45W)
• USB-A: up to 15 W (5V/3A)
• Note: Use suitable PD-certified USB-C cables to ensure maximum output

Recommended applications
Designed for installation in kitchens, living rooms, bedrooms, corridors and other indoor dry areas. Observe ambient temperature and humidity limits.

Features / Technical specifications

• Connector type: USB Type C & A
• USB-C power: up to 45 W (Power Delivery)
• USB-A power: up to 15 W
• Input voltage: 230 V AC
• Connection: screw clamp
• Mounting: flush-mounted (Ø 65 mm flush box, installation per DIN 49073)
• Frame inner dimension: 55 x 55 mm (compatible with 55-series switch programs)
• Conductor cross-section: up to 2x2.5 mm²
• Color: matt white (RAL 9010)
• Scope of delivery: USB-C/USB-A flush insert, central plate and frame
