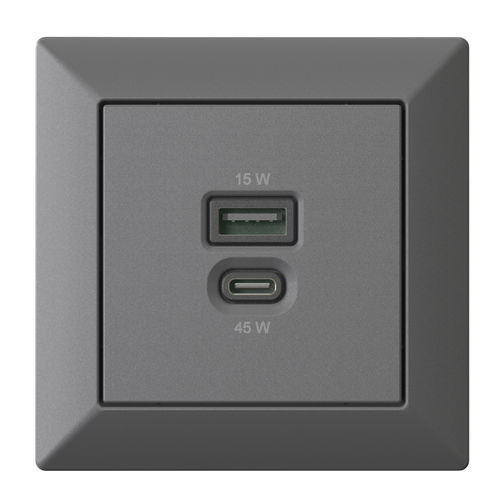

Built-in electrical socket 6530x0101

Product overview
Connector type: USB Type C & A
Compatible devices: Tablets, laptops, phones, smartwatches
Compatible phone models: All devices that require USB-C or USB-A charging.

Included

• USB-C / USB-A combo flush-mounted charging unit
• Center plate
• Frame (anthracite)

Features / Highlights

• Fast charging (Power Delivery)
• Input voltage: 230 V AC
• Mounting: Flush-mounted
• Fits all standard Ø 65 mm flush boxes with device screws, installation according to DIN 49073
• Compatible with 55 mm switch systems (frame inner size 55 x 55 mm), e.g., Busch Balance SI or GIRA Standard 55
• For use in kitchen, living room, bedroom, hallway and other indoor spaces
• Wire connection up to max. 2 x 2.5 mm² (feed-through possible in multi-frames)

Performance data
USB-C: 45 W (max.) – Power Delivery: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/2.25 A (45 W with compatible device/cable combinations)
USB-A: 15 W (max.) – 5 V/3 A
Note: Use original / PD‑compatible charging cables to reach maximum charging power.

Technical specifications
Connection: Screw terminal
Installation: Flush-mounted
Color: Anthracite (RAL 7016)
Pack size: 1 unit
Frame: With frame

Product details / Regulatory information

• Brand: EHMANN
• EAN (GTIN-13): 4012096024811
• Product number / SKU: 6530x0101
• Voltage: 230 V AC
• USB-C maximum power: 45 W (Power Delivery)
• USB-A maximum power: 15 W
• Connection type: Screw terminal
• Mounting: Flush-mounted, for Ø 65 mm standard flush boxes
• Frame inner-dimension compatibility: 55 x 55 mm
• Conductor cross-section for connection: up to max. 2 x 2.5 mm²
• Color: Anthracite (RAL 7016)
