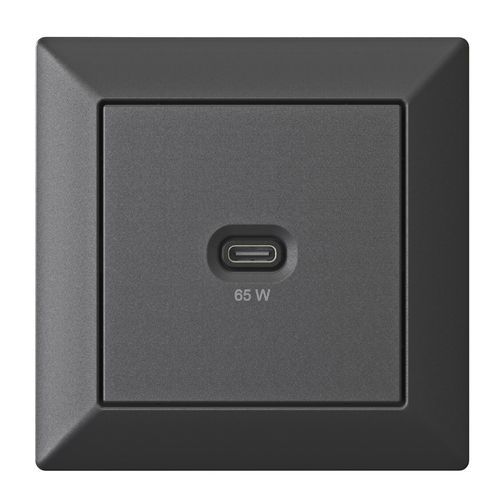

Built-in electrical socket 6520x0001
Add to favorites
Compare this product
Characteristics
- Mounting
- built-in
- VAC
230 V
Description
Product information
Technical specifications
- Connector type: USB Type-C
- Compatible devices: laptops, tablets, smartphones, smartwatches and other USB-C devices
- Included components: flush-mount USB-C charging module, central plate and frame
- Key feature: fast charging via USB-C Power Delivery (up to 65 W)
- Input voltage: 230 V AC
- Mounting: flush-mounted (for standard Ø 65 mm backboxes)
- Compatibility: fits 55x55 mm inner frame dimension for 55-series switch programs (e.g., Busch Balance SI by Busch-Jaeger, Standard 55 by GIRA)
- Wiring: terminals for up to 2x2.5 mm² for easy daisychaining in multi-gang frames
- Power adjustment: variable up to 65 W
- Installation: designed for mounting according to DIN 49073
Technical specifications
- Connection: screw terminal
- Mounting type: flush-mounted
- Color: matte black (RAL 9005)
- Packaging: 1 unit
- Frame: included
- Input voltage: 230 V AC
- Max. charging power: 65 W (USB-C Power Delivery)
- Compatibility: standard Ø 65 mm flush backboxes; frame inner dimension 55x55 mm for 55-series programs
- Conductor cross-section: up to 2x2.5 mm²
