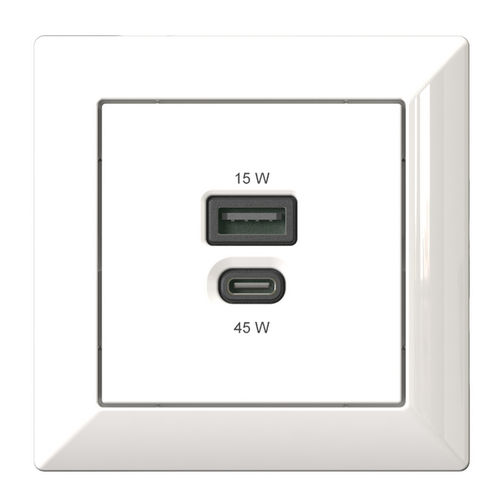

Built-in electrical socket 6560x0101

screw-in

Product information

• Connector type: USB Type C & USB Type A
• Compatible devices: tablets, laptops, phones, smartwatches
• Compatible phone models: any devices that charge via USB-C or USB-A
• Included components: USB-C / USB-A combination flush-mount charging unit, central plate and frame
• Special feature: Fast charging (Power Delivery)
• Input voltage: 230 V AC
• Mounting: Flush-mount
• Installation according to DIN 49073; suitable for standard flush-mounted boxes Ø 65 mm with device screws
• Compatible with 55 mm switch programs (frame inner dimension 55x55 mm), e.g. Busch Balance SI (Busch-Jaeger), Standard 55 (GIRA) and others
• Installation locations: kitchen, living room, bedroom, hallway and other indoor spaces
• Wiring: connection of conductors up to max. 2x2.5 mm²; suitable for simple loop-through wiring in multi-frames

Charging power and voltage / currents

• USB-C: up to 45 W (Power Delivery)
• USB-C power profiles (examples): 5 V / 3 A (15 W), 9 V / 3 A (27 W), 12 V / 3 A (36 W), 15 V / 3 A (45 W), 20 V / 2.25 A (45 W)
• USB-A: up to 15 W (5 V / 3 A)
• Note: Use original / PD-compatible charging cables for maximum charging power

Features
Connection: screw terminal
Mounting types: flush-mount
Color: White (RAL 9010)
Packaging unit: 1 pc
Frame: with frame

Characteristics / Specifications

• Suitable as integrated charging station for USB-C and USB-A capable end devices
• Fast charge function (USB-C 45 W / USB-A 15 W)
• Installation according to DIN 49073
• Compatibility with common 55 mm frame programs
• Maximum conductor cross-sections: 2x2.5 mm²
• Input: 230 V AC
