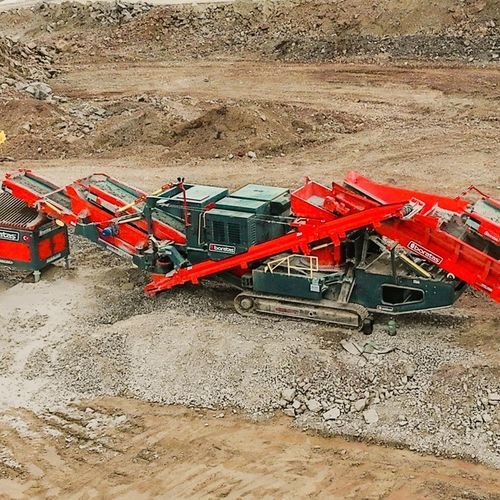

Cone crushing and screening plant BPC100-S

mobilediesel enginecrawler

Boratas BPC100-S is a tracked mobile cone crushing and screening plant designed for closed circuit aggregate production, quarrying, mining, and recycling applications. The machine combines cone crushing and final screening on a single crawler chassis to deliver controlled product sizing and stable throughput.

The BPC100-S features a high efficiency cone crusher and an onboard screening unit for continuous crushing and classification. It is suitable for processing medium to hard natural stones such as granite, basalt and limestone, and is also used for recycling construction waste, asphalt, and concrete. The closed circuit system enables accurate grading and stable output quality without the need for external screening equipment.

Our tracked cone crushers are equipped with an efficient electric drive system supported by an integrated diesel generator. This hybrid configuration enables reduced fuel consumption, lower maintenance requirements, and independent operation on both powered and remote sites without compromising crushing performance.

Routine maintenance and operator safety are supported through accessible service zones, centralized lubrication points, and clearly arranged inspection areas. Controlled access platforms help reduce risks during inspection, adjustment, and wear part replacement.

Manufactured in compliance with international quality standards and supported by Boratas warranty and after sales service.

For further technical details and project specific solutions, kindly visit our website.

Maximum Feed Size: 42 - 214 mm
ACC Automatic Control
Screen: Single-deck, 1300 x 3300 mm


Standard Components

• Cone crusher unit
• Integrated screening unit
• Crawler mounted chassis
• Hybrid diesel electric drive system
• Feed hopper and adjustable feeder
• PLC based control system
• Wireless remote control
• Dust reduction system
• Conveyor systems with drum motors
• Integrated lighting system

Key Operational Features

• Integrated Crushing and Screening

Combined cone crushing and screening supports controlled final sizing.

• Closed Circuit Operation

Return screening system enables accurate grading and stable output.

• Crawler Mobility System

Track mounted frame allows flexible movement and fast setup.

• Adjustable Process Control

Crusher and screen settings can be adjusted for different materials.

• Hybrid Power Operation

Diesel electric configuration supports low operating cost and flexible energy use.

• Maintenance and Safety Oriented Design

Accessible service points and safety systems support secure operation and reduced downtime.
