Impact crushing and screening plant BPK125-S

mobilediesel enginehorizontal-shaft

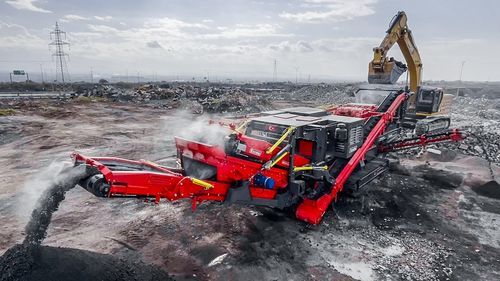

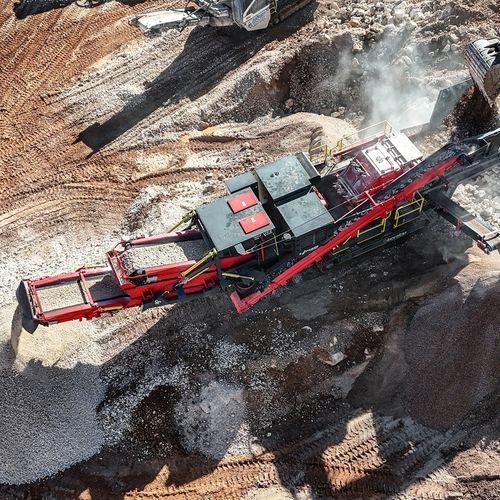

Boratas BPK125-S is a tracked mobile impact crusher plant designed for aggregate production and recycling applications in quarry, construction, and demolition projects. Operating as a closed circuit impact crushing unit, it enables on-site material processing with controlled final sizing and stable production performance under demanding conditions.

The BPK125-S is equipped with a high performance impact crusher from the Boratas PDK series and an integrated return screening system. It is suitable for processing natural stone such as limestone and dolomite, as well as recycling asphalt, and construction waste.
Its high reduction ratio and shaping capability support the production of graded and cubical end products, while the closed circuit configuration ensures consistent product size without the need for additional screening equipment.

The crusher operates with a hybrid diesel electric drive system based on electric operation supported by an integrated diesel generator. This configuration improves energy efficiency, reduces fuel consumption, and enables independent operation on both powered and remote sites without compromising crushing and screening performance.

Routine maintenance and operator safety are supported through accessible service zones, centralized lubrication points, and clearly arranged inspection areas. The machine is designed with a heat-treated rotor, replaceable wear components, and a two-part housing structure with hydraulic adjustment, allowing efficient servicing and reduced downtime during operation.

Manufactured in compliance with international quality standards and supported by Boratas warranty and after-sales service.
For further technical details and project-specific solutions, kindly visit our website.


Standard Components

• Impact crusher unit (PDK Series)
• Integrated single-deck return screening system
• Crawler-mounted chassis
• Hybrid diesel electric drive system
• Vibrating feeder with double-deck pre-screen
• Hydraulically foldable bypass conveyor
• Hydraulically adjustable main discharge conveyor
• PLC-based control system
• Wireless remote control
• Drum motors for conveyors
• Integrated lighting system


Key Operational Features

• Closed Circuit Crushing and Screening
Integrated return screening system ensures controlled product sizing and stable output quality.

• High Reduction Impact Crushing
Optimized rotor and crushing chamber support efficient material reduction and consistent product shape.

• Crawler Mobility System
Tracked chassis enables flexible movement and fast setup across different job sites.

• Adjustable Crushing Parameters
Hydraulic adjustment system allows precise control of crusher settings and output size.

• Hybrid Power Operation
Diesel electric configuration supports efficient operation with reduced fuel consumption.

• Maintenance and Safety-Oriented Design
Accessible service points and durable wear components support secure operation and reduced downtime.
