Cone crusher BPC200

mobilesand productionhigh-capacity

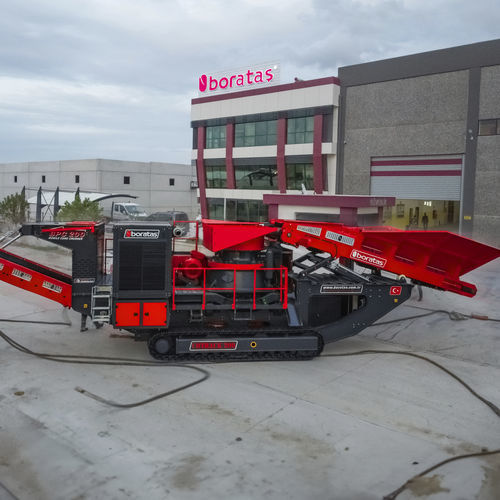

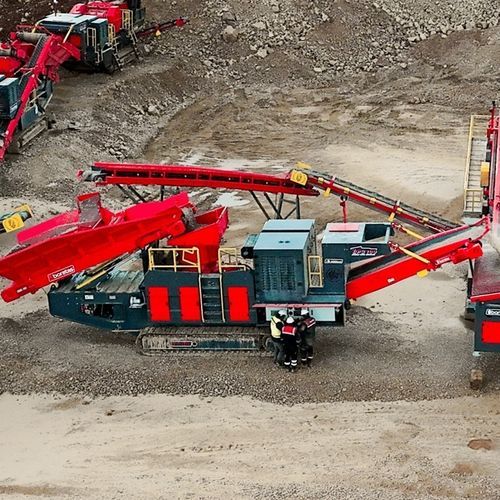

Boratas BPC200 is a tracked mobile cone crusher developed for high capacity secondary and tertiary crushing in aggregate production, mining, and recycling applications. The machine is designed for operations that require high throughput, stable performance, and consistent cubical product quality when processing hard and abrasive materials.

The BPC200 is equipped with a high performance cone crusher and is suitable for processing granite, basalt, limestone, and other natural stone materials. Its reinforced structure supports continuous operation with larger feed sizes, while the crawler mounted chassis allows smooth relocation and integration into multi stage crushing systems.

The crusher operates with a hybrid diesel electric drive system based on electric operation supported by an integrated diesel generator. This configuration improves energy efficiency, reduces fuel consumption, and enables independent operation on powered and remote sites.

Routine maintenance and operator safety are supported through accessible service zones, centralized lubrication points, and clearly arranged inspection areas. Controlled access platforms and integrated safety systems help reduce risks during inspection, adjustment, and wear part replacement.

Manufactured in compliance with international quality standards and supported by Boratas warranty and after sales service.

For further technical details and project specific solutions, kindly visit our website.

Maximum Feed Size: 47 - 250 mm
ACC Automatic Control
Generator Capacity (Standby Power): 500 kVA
Weight: approx. 52,000 kg

Standard Components

• Cone crusher unit
• Mobile chassis
• Hybrid diesel-electric drive system
• Feed hopper and adjustable feeder
• PLC based control system
• Wireless remote control
• Dust reduction system
• Conveyor systems with drum motors
• Integrated lighting arm

Key Operational Features

• High Capacity Crushing Performance

Designed for stable reduction of larger feed sizes and high production volumes.

• Crawling Tracks Mobility System

Track mounted frame supports reliable movement and fast setup on site.

• Adjustable Crushing Parameters

Crusher settings can be adjusted to suit different material characteristics.

• Hybrid Power Operation

Diesel electric configuration supports low operating cost and flexible energy use.

• Maintenance and Safety Oriented Design

Accessible service points and safety systems support secure operation and reduced downtime.

• Plant Integration Capability

Suitable for multi stage mobile crushing and screening plant layouts.
