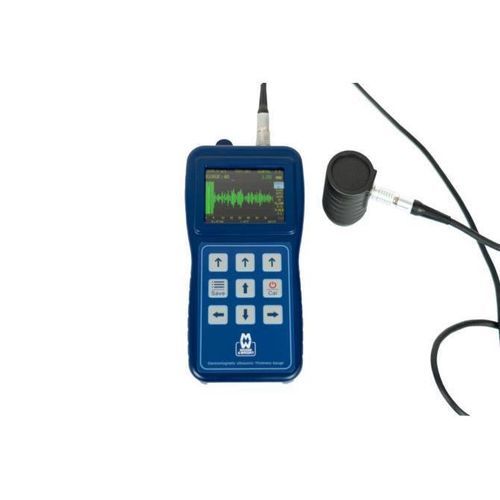

Corrosion thickness gauge MWT-2600

metalfor pipesfor metal pipes

Product description
The Moore & Wright MWT-2600 is an electromagnetic ultrasonic thickness gauge designed for non-destructive thickness measurement of conductive materials, primarily metals. It generates ultrasonic waves by electromagnetic excitation at the material surface and analyses returned single-echo or dual-echo signals to determine thickness without direct coupling.

Principle and measurement

• Ultrasonic generation via electromagnetic interaction at the surface, eliminating the need for coupling gels.
• Measurement modes: single-echo and dual-echo analysis for different material and coating conditions.
• Suitable for in-situ measurements on hot, coated or moving surfaces where contact probes are impractical.

Applications

• Inspection of pipelines and pressure vessels.
• Corrosion, erosion and wear assessment on conductive components.
• Field measurements on hot or coated parts without part cooling.

Key features

• Non-contact thickness measurement for conductive materials.
• Compatible with coated surfaces and limited-access locations.
• Optional high-temperature probe enables measurements up to 800°C in-field.
• Single-echo and dual-echo modes to adapt to different material conditions.

Operational notes

• Instrument selection and probe choice depend on material conductivity and operating temperature.
• Calibration and verification against known standards recommended for critical inspections.
• Suitable for routine integrity checks in industrial environments.
