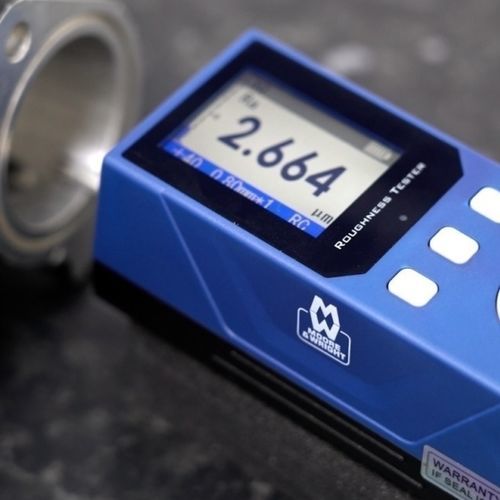

Surface roughness tester MWT-1200

handheldportablecompact

Product overview
The MWT-1200 Surface Roughness Tester by Moore & Wright is a portable, hand-held instrument designed for on-site measurement of surface texture, including hard-to-reach internal bores using its external probe. It combines a high-precision inductive sensor with onboard waveform display and extensive data storage for production and inspection environments.

Measurement principle
Measurement is performed by drawing the stylus across the component surface at a controlled speed. Surface height variations change the inductance of the sensor coils; these changes are amplified, digitised and filtered by the device's ARM processor to compute standard roughness parameters. Results and waveform graphs are displayed on the device and can be stored or transferred for further analysis.

Features

• Hand-held, compact design for workshop and field use
• External/extended probe for internal bores and difficult geometries
• Bright 2" LCD with text and waveform display (including Abbott curve)
• Measures standard parameters: Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rsk, Rku, Rpc, Ry, Rmax, R3z
• Configurable measuring range and evaluation length
• Large internal storage: up to 500 sets of raw data and waveforms
• Wired data transfer to dedicated PC application for display, reporting and Excel export
• Rechargeable 1000 mAh Li-ion battery with external adapter and auto-shutdown options
• Includes precision reference standard and protective carry case

Software & Data
Dedicated PC software controls the tester, visualises waveforms and Abbott curves, saves measurement sets and exports data in Excel-compatible format. Data transfer is via a wired connection to the PC application.

Technical specifications

• Product Code: MWT-1200
• Model: MWT-1200
• Sensor type: High-precision inductive sensor
• Display: 2" LCD with waveform graphs
• Resolution: 0.001 µm
• Accuracy: ±10%
• Measuring parameters: Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rsk, Rku, Rpc, Ry, Rmax, R3z
• Standards: ISO, DIN, ANSI, JIS
• Data storage: 500 sets of raw data and waveforms
• Power: Internal 1000 mAh Li-ion battery; external power adapter supplied
• Includes: precision reference standard and protective carry case
• Price: POA (price on application)
