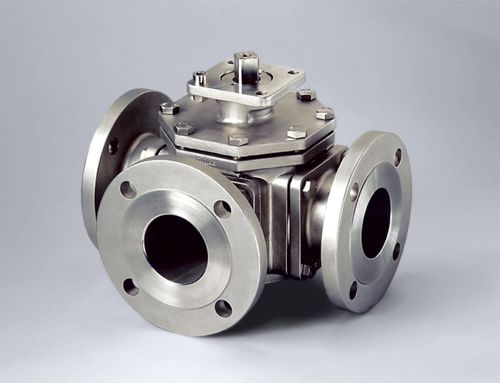

Ball valve MPT seriesflow controlfor waterflange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Function
- flow control
- Media
- for water
- Body
- flange
- Number of channels
- 3-way
- DN
Max.: 300 mm
(11.811 in)Min.: 8 mm
(0.315 in)- Pressure
Max.: 1,000 psi
Min.: 150 psi
- Temperature
Max.: 260 °C
(500 °F)Min.: -31 °C
(-24 °F)
Description
The Multiport Series offers 3-way and 4-way flow control. The Multiport Series valves are available in two different body styles, a compact standard port and a block style full port. Standard port valves are available with NPT Threaded and Quick Clamp end connections. Full port valves are available with NPT Threaded, Quick Clamp, Socket or Butt Weld, and Flanged end connections. End connections can be mixed on a single valve. Many parts are fully interchangeable between models. Cost effective Multiport Series ball valves feature multidirectional control combined with shutoff capacity in one valve. Valve duplication and the need for an extra shutoff valve are eliminated.
Catalogs
No catalogs are available for this product.
See all of Bray International‘s catalogs
