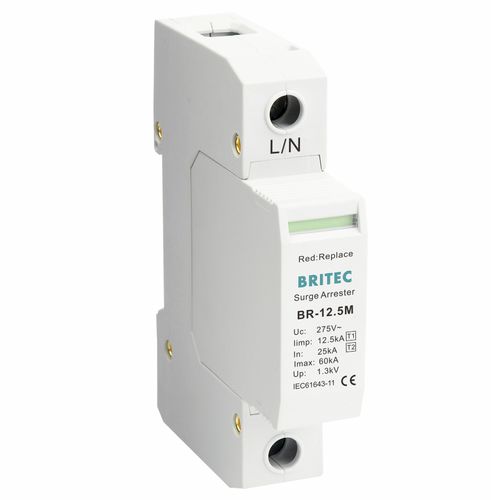

Type 1 surge arrester BR-12.5M 1P seriestype 2class Iclass II
Add to favorites
Compare this product
Characteristics
- Type
- type 2, type 1, class II, class I
- Applications
- remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, anti-surge
- Other characteristics
- with fault indication, single-pole, fast-response, low-voltage, AC, three-phase, single-phase, DIN rail, plug-in, thermoplastic
- Voltage
150 V, 275 V, 320 V
- Primary current
12,500 A, 25,000 A, 60,000 A
Description
Visual status display.
The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.
Available with optional remote signaling.
Simple standard Din rail mounting.
Labeled connections.
energy
Versions with 1P, 1+NPE, 2P, 3P, 3+NPE and 4P.
Exclusive devices for TN-S, TN-C and TT systems.
Reversible chassis to allow cable entry from above or below.
Indoor fixed installation, voltage limited type.
Module design.
Large lightning current discharge capacity.
Easy to maintain.
When the SPD works normally, the visible window displays green, and when it fails, it displays red.
Time of response<25ns.
Could supply different working voltage level and lightning discharge current, also could customized according to different requirement.
Application:
Usable in systems with lightning protection class 1+2.
Installation:
Please connect according to the installation diagram; the connecting wires must meet the requirements.
When the failure display window of the module indicates red, it means that the lightning protection device has failed, and new products should be replaced in time.
