Type 1 surge protector BR-7M 2P series
type 2class Iclass II

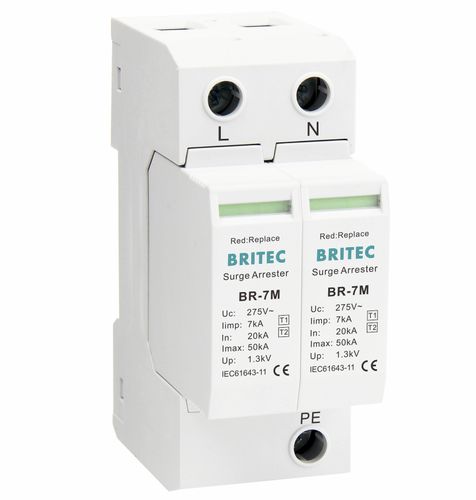

Type 1 surge protector - BR-7M 2P series - Britec Electric Co., Ltd - type 2 / class I / class II
Type 1 surge protector - BR-7M 2P series - Britec Electric Co., Ltd - type 2 / class I / class II
Type 1 surge protector - BR-7M 2P series - Britec Electric Co., Ltd - type 2 / class I / class II - image - 2
Add to favorites
Compare this product
Go to the Britec Electric Co., Ltd website for more information

Characteristics

Type
type 2, class II, type 1, class I
Applications
anti-surge, for power supplies, electronic equipment, remote signaling, for transient current protection
Other characteristics
2-pole, compact, combined, DIN rail, plug-in, modular, varistor, fast response time, low-voltage, single-phase, AC, with fault indication, common-differential mode
Voltage

150 V, 275 V, 320 V

Primary current

7,000 A, 20,000 A, 50,000 A

Open circuit voltage

1.3 kV

Max.: 1.5 kV

Min.: 0.8 kV

Description

BR-7M high energy modular SPD is designed according to IEC standard. This model designed in modular with excellent airtight property. It is with 35mm din rail, which make it easy for installation. Application: It could be installed in AC power system. This product is especially suitable for application in the A grade Lightning Protection in high risk area of lightning strike. Installation: The protector is installed with standard 35mm track. The protector is connected by 4 ~ 35mm copper wire. No need to adjust after the protector is installed as required. During operation, regularly check whether the module is red; replace the failed component in time.
