Type 1 surge protector BR-7M 1P series
type 2class Iclass II

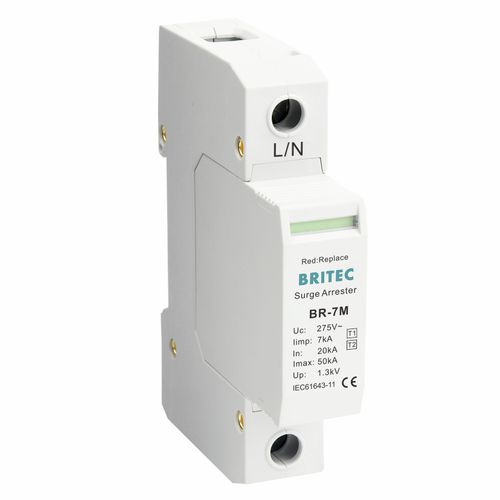

Type 1 surge protector - BR-7M 1P series - Britec Electric Co., Ltd - type 2 / class I / class II
Type 1 surge protector - BR-7M 1P series - Britec Electric Co., Ltd - type 2 / class I / class II
Type 1 surge protector - BR-7M 1P series - Britec Electric Co., Ltd - type 2 / class I / class II - image - 2
Add to favorites
Compare this product
Go to the Britec Electric Co., Ltd website for more information

Characteristics

Type
type 2, class II, type 1, class I
Applications
anti-surge, for power supplies, for electrical installations, electronic equipment, remote signaling, for transient current protection, electrical line
Other characteristics
varistor, compact, combined, thermoplastic, modular, single-pole, fast response time, low-voltage, single-phase, AC, with fault indication, plug-in, DIN rail
Voltage

150 V, 275 V, 320 V

Primary current

7,000 A, 20,000 A, 50,000 A

Open circuit voltage

1.3 kV, 1.5 kV

Description

The technical performance of the products meets the standard technical equipment of GB18802.1 and IEC61643-11. It adopts 35mm standard rail. This model designed in modular with excellent airtight property. It is with 35mm din rail, which make it easy for installation. Application: Installation at LPZ 0 -1 or higher, protecting low voltage equipment. Applied in PSD Class I+II (Class B+C). Connected to AC low-voltage power systems for protection of equipment from transient over-voltage caused by the inducted lightning stroke or internal power systems. Installation: The protector is installed with standard 35mm track. The protector is connected by 4 ~ 35mm copper wire. No need to adjust after the protector is installed as required. During operation, regularly check whether the module is red; replace the failed component in time.
