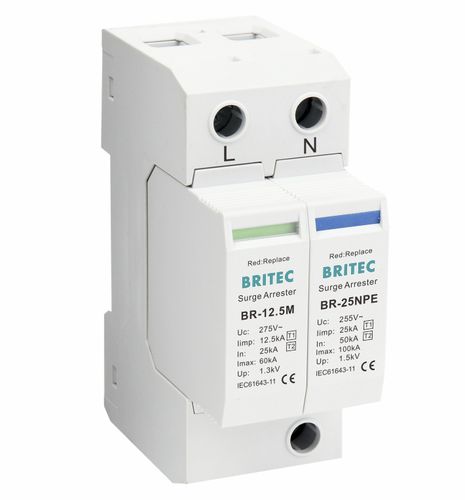

Type 1 surge arrester BR12.5M 1+1 seriestype 2class Iclass II
Add to favorites
Compare this product
Characteristics
- Type
- type 2, type 1, class II, class I
- Applications
- remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line
- Other characteristics
- 2-pole, N-PE, with fault indication, varistor, gas discharge tube, modular, fast-response, low-voltage, AC, DIN rail, thermoplastic, plug-in
- Voltage
150 V, 255 V, 275 V, 320 V
- Primary current
Max.: 100,000 A
Min.: 12,500 A
Description
Modular and plug-in arrestor.
Type 1+2 surge arrestor according to EN 61643-11.
Operating state / fault indication by green / red indicator flag in the inspection window.
Remote signaling can be selectable.
Universally suitable for TT systems.
Application:
For general protection of big installations and protection of small installations with external lightning protection.
Installation:
Before installation, it should be check whether the surge protector is intact. If it is damaged or the display window is red, it cannot be used; if the window is green, it is normal.
