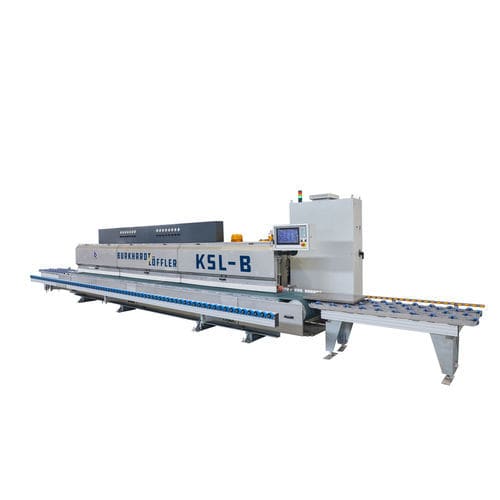

Belt sanding unit KSL-B

The KSL-B is a belt edge grinding and polishing machine engineered for continuous production on a conveyor belt. Its modular concept and broad accessory range allow configuration for specific production needs while ensuring straightforward operation, low maintenance and high throughput.

Key features

• Continuous belt operation for high throughput and uninterrupted production
• Modular machine concept with comprehensive accessories for customized configurations
• Compact footprint suitable for narrow production halls
• Can be equipped with up to 10 front grinding heads and up to four top and bottom bevel supports
• Durable components and modern control technology for reliable operation
• Optional special aggregates with variable power range (Made in Germany)

Technical characteristics / specifications

• Workpiece thickness: 20 - 80 mm
• Belt speed: 0.5 - 7.0 m/min
• Conveyor belt width: 600 mm
• Grinding heads (power): 2.2 kW
• Surface grinding disc Ø: 130 - 150 mm
• Chamfering heads (power): 2 kW
• Bevel grinding disc Ø: 130 mm
• Special aggregates (power range): 4 - 10 kW
• Working height: from 750 mm
