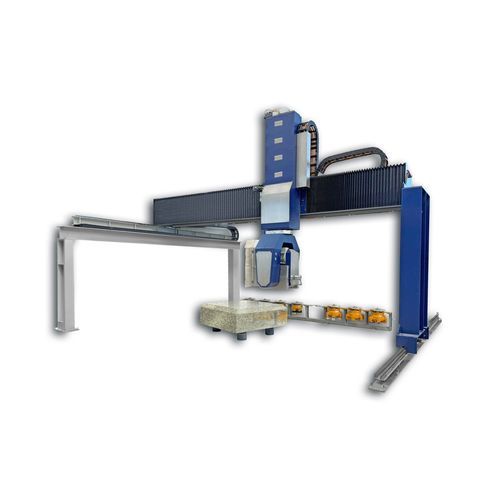

Flat part grinding polishing machine FSA 567 C

metalsheet metalCNC

Overview
The FSA 567 C is a 5-axis automatic grinding and polishing machine designed for fully automatic grinding, honing and polishing of horizontal, vertical and inclined surfaces. Its large machining area enables the processing of multiple workpieces simultaneously and supports various grinding programs (rectangle, zigzag, offset). The integrated tool magazine with automatic tool change allows sequential execution of several grinding steps.

Key features

• 5-axis automatic grinding and polishing of horizontal, vertical and inclined surfaces
• Large machining area for simultaneous processing of multiple workpieces
• Tool magazine with automatic tool change to enable sequential fully automatic grinding steps
• Various grinding programs available (rectangle, zigzag, offset)
• Programmable feed rates and sequences for repeatable finishes

Applications

• Surface finishing of large metal parts and panels
• Preparation and polishing of structural components
• Batch processing of parts with mixed geometries

Product preview / Multimedia

• Product page includes multiple images and an embedded product video (YouTube)

Technical specifications

• Main motor: 18 kW
• Feed rate: 0.5–20 m/min
• Tool changing: automatic (tool magazine)
• Replaceable guide rails: not specified
• Min. workpiece height: 40 mm
• Max. workpiece height: 1,000 mm
• Max. workpiece width: 4,300 mm

Options and accessories

• Various abrasive tools and tool holders
• Automation interfaces for loading/unloading systems
• Custom program packages and maintenance kits
