Metal polishing machine KSA 542

industrialchamferingautomatic

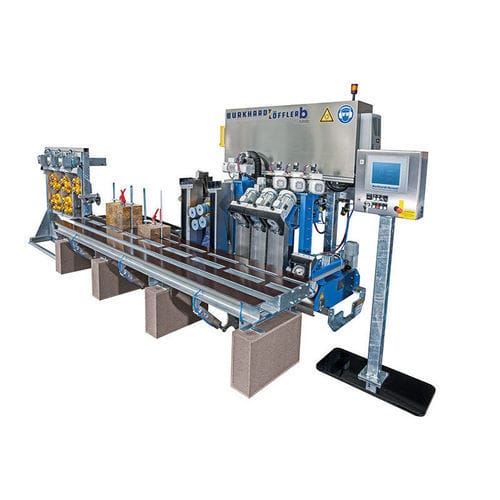

The KSA 542 is an edge processing machine designed for precision chamfering and grinding of thick workpieces in a space-saving layout. It integrates automated tool handling to allow fast, repeatable changes of grinding equipment and efficient chamfering workflows.

Key features

• Space-saving automatic magazine enabling the use of multiple planetary grinding heads (planetary tool change system).
• Capability to equip up to four upper and four lower chamfering heads for combined chamfering operations.
• Automatic changing of grinding heads for reduced setup time and increased productivity.
• Automatic scanning of workpiece thickness to adapt processing to varying material dimensions.

Technical specifications

• Grinding thickness: 30–500 mm
• Grinding heads (power): 4 kW
• Chamfering heads (power): 2 kW
• Planetary grinding heads: up to 6 (via compact automatic magazine)
• Upper and lower chamfering heads: up to 4 combinable
• Workpiece thickness detection: automatic
• Grinding head/tool change: automatic
