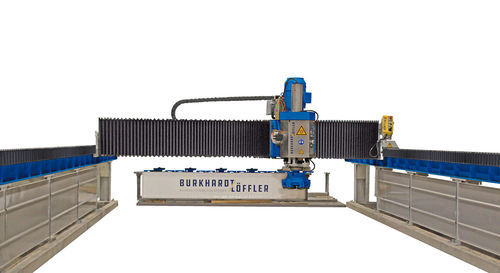

Flat part grinding polishing machine FSA 561 WZW

stonefor granitefor marble

The FSA 561 WZW is a slab polishing and surface grinding machine equipped with an automatic head-changer for calibrating, matte grinding, polishing, brushing and disc blasting (plate bushhammering) of a wide range of stone materials. It is intended for multi-function slab and large-panel finishing in industrial stone-processing lines.

Key features

• Automatic head-changer for rapid tool changes and flexible processing modes.
• Multi-function capability: calibrating, matte grinding, polishing, brushing and disc blasting (plate bushhammering).
• Suitable for a variety of materials: granite, engineered/composite stone, limestone, marble, sandstone.
• Adjustable processes to obtain different surface finishes from matte to polished.

Suitable materials / Applications

• Horizontal slab processing and large-format panel finishing.
• Granite, composite/engineered stone, limestone, marble, sandstone.
• Calibration, finishing, surface texturing (brushing, bushhammering).

Technical specifications

• Grinding thickness: 10–250 mm
• Working width: 2000–5000 mm
• Working length: any / variable
• Main motor: 15–22 kW
