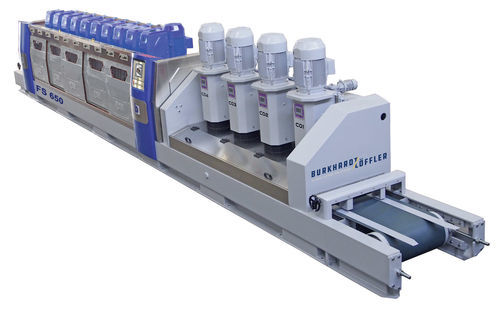

Cutting finishing line FS 650/2200

grindingfinishinglinear

The FS 650/2200 is a polishing line engineered for calibrating, grinding and polishing raw slabs and strips of limestone and marble. Its modular concept and configurable supports enable tailor-made production lines to meet varied manufacturing requirements, from calibration to final finishing.

Key features

• Modular machine concept allowing customized configurations of calibration and grinding supports.
• Independent adjustment of pressure and counter-pressure for precise adaptation to different materials.
• Designed for processing slab strips and raw slabs in demanding manufacturing processes, including calibration, grinding and polishing operations.
• Configurable number of calibration and grinding supports to suit production needs.
• Suitable for limestone and marble.

Technical specifications

• Calibrating head: 22 kW
• Polishing head: 7.5–18.5 kW
• Working width: 250–2200 mm
• Grinding (workpiece) thickness: 15–120 mm
• Individual pressure / counter-pressure control
• Modular and configurable number of calibration and grinding supports
