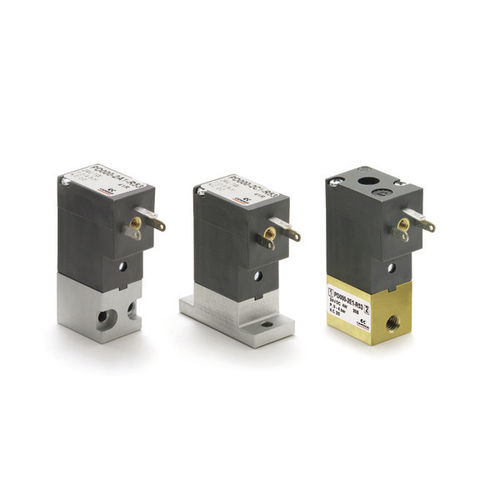

Direct-operated solenoid valve PD series
2-wayNCair

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
air
Body
base-mounted, brass, anodized aluminum, IP65
Other characteristics
plug
DN

Max.: 2.5 mm
(0.098 in)

Min.: 0.8 mm
(0.031 in)

Voltage

12 V, 24 V

Temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Pressure

Max.: 12 bar
(174 psi)

Min.: -0.9 bar
(-13.1 psi)

Description

The Series PD directly operated solenoid valves are available in the 2/2-way normally closed (NC) version. Pneumatic interfaces allow installation on manifolds in horizontal or vertical position. Also available with threaded connections. Please note that all Series PD solenoid valves are supplied with direct current (DC). To operate in alternating current (AC), it is necessary to use the connector with bridge rectifier Mod. 125-900.
