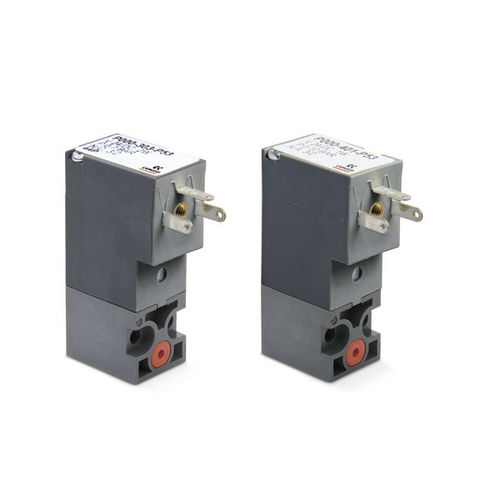

Miniature solenoid valve P series
direct-operated3-wayNC

miniature solenoid valve
miniature solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
3-way
Function
NC, NO
Medium
air
Body
PBT, miniature, manifold, base-mounted, IP65
Other characteristics
ISO, plug
Temperature

Min.: 0 °C (32 °F)

Max.: 50 °C (122 °F)

Pressure

Min.: 0 bar (0 psi)

Max.: 10 bar (145 psi)

DN

Min.: 0.8 mm (0.031 in)

Max.: 1.5 mm (0.059 in)

Voltage

Min.: 12 V

Max.: 110 V

Description

This product has many features. Valve functions are 3/2 NC - NO, and it features poppet type construction. The mounting is done using screws, and the materials body = technopolymer PBT poppet seal = FKM other seals = NBR (FKM on demand) others = stainless steel. Installation can be done in any position. Operating temperature is 0 ÷ 50°C, and it has a nominal flow rate of (6 bar ∆P 1) ø 1,5 Qn 35 Nl/min ø 1,1 Qn 25 Nl/min ø 0,8 Qn 14 Nl/min. Fluid is filtered air, without lubrication, and inert gas. ISOVG32 oil should be used with lubricated air; once applied the lubrication should never be interrupted. Power consumption is 2 W, 1W (24V only), and the voltage tolerance is ± 10 percent. Class of insulation is F, Protection class is IP65 (with connector DIN 40050), and Duty cycle is ED 100 percent.
